AIC RMC-1E-02: Edge Chassis, 1U 3X 4028mm Fan, Single 250W 80+ Gold, USB3.0 w/ Riser

SKU: CAAICRMC-1E001-02
Brand: AIC
1U Rackmount 15" Depth - up to 12"(W) x 9.6"(D) ATX, Internal: 2x 3.5", 2x 2.5" 7mm, Front: 2x USB 3.0, 3x 4028mm  fan, 1x full-height add-on slot, 250W single power supply, w/o rail, w/1xPCIe Gen4 x8 riser, black
Price: $162.50
AIC RMC-1E-02: Edge Chassis, 1U 3X 4028mm Fan, Single 250W 80+ Gold, USB3.0 w/ Riser
AIC RMC-1E-02: Edge Chassis, 1U 3X 4028mm Fan, Single 250W 80+ Gold, USB3.0 w/ Riser
AIC RMC-1E-02: Edge Chassis, 1U 3X 4028mm Fan, Single 250W 80+ Gold, USB3.0 w/ Riser
AIC RMC-1E-02: Edge Chassis, 1U 3X 4028mm Fan, Single 250W 80+ Gold, USB3.0 w/ Riser
AIC RMC-1E-02: Edge Chassis, 1U 3X 4028mm Fan, Single 250W 80+ Gold, USB3.0 w/ Riser
AIC RMC-1E-02: Edge Chassis, 1U 3X 4028mm Fan, Single 250W 80+ Gold, USB3.0 w/ Riser
AIC RMC-1E-02: Edge Chassis, 1U 3X 4028mm Fan, Single 250W 80+ Gold, USB3.0 w/ Riser
AIC RMC-1E-02: Edge Chassis, 1U 3X 4028mm Fan, Single 250W 80+ Gold, USB3.0 w/ Riser
AIC RMC-1E-02: Edge Chassis, 1U 3X 4028mm Fan, Single 250W 80+ Gold, USB3.0 w/ Riser
AIC RMC-1E-02: Edge Chassis, 1U 3X 4028mm Fan, Single 250W 80+ Gold, USB3.0 w/ Riser
(Click to see larger image and other views)
Product Details

RMC-1E is an entry-level 1U appliance chassis with 15” depth for space-sensitive applications, such as Network & Security appliance, firewall, VPN, Telephony and military applications. Standard ATX size (9.6” x 12”) motherboard can be populated into this appliance chassis. RMC-1E is a cost-effective appliance chassis that provide lower TCO (total cost of ownership) to IT professionals for higher ROI.  (Motherboard is not included.)

Key Features

- Full Height expansion slot
- Front access dual USB ports
- 3 x 4028 fans for CPU cooling
- Short-depth design for space critical application
- Equipped with 250W power supply

- 1x PCIe x8 Riser

- Front ventilation for superior cooling

Dimensions (W x D x H)
mm : 427 x 381 x 44.4
inches : 16.8 x 15 x 1.75
Industry Standard
EIA-RS310D
Material
Heavy-duty preplated SPGC cold-rolled steel
Color
Front Panel : Black
Cooling
Standard :
3 x 40x28mm fans
Power Supply
Standard :
250W single PSU
Expansion Slot
1 full height via riser card

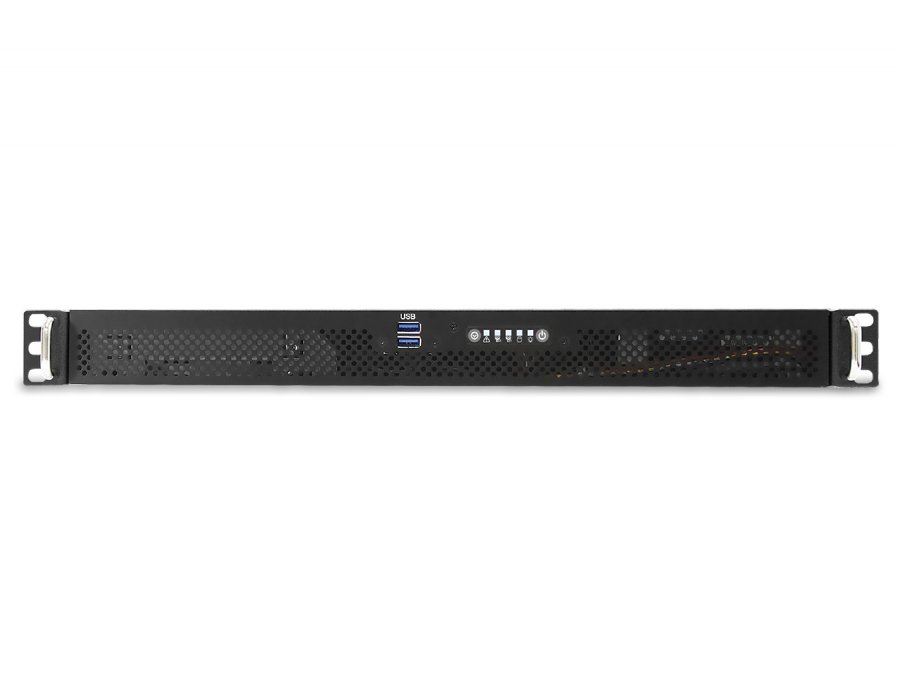

Front Panel
- System power on/off
- System reset
- 2 x USB ports
LED Indicators
- Power LED
- HDD LED
-  LAN 1
- LAN 2
- Alert LED
System Board
Up to 12"(W) x 9.6"(D) ATX compliant MB
Drive Bays
Internal : 2 x 3.5";  2 x 2.5" (7mm)
Storage Temperature
0°C(32°F) ~ 50°C(122°F)
Humidity
5% ~ 95% non-condensing
Gross Weight (w/ PSU; w/o Rail)
kgs: 7
lbs: 15.4
Package Dimension (W x D x H)
mm : 548 x 574 x 173
inches : 21.6 x 22.6 x 6.8
