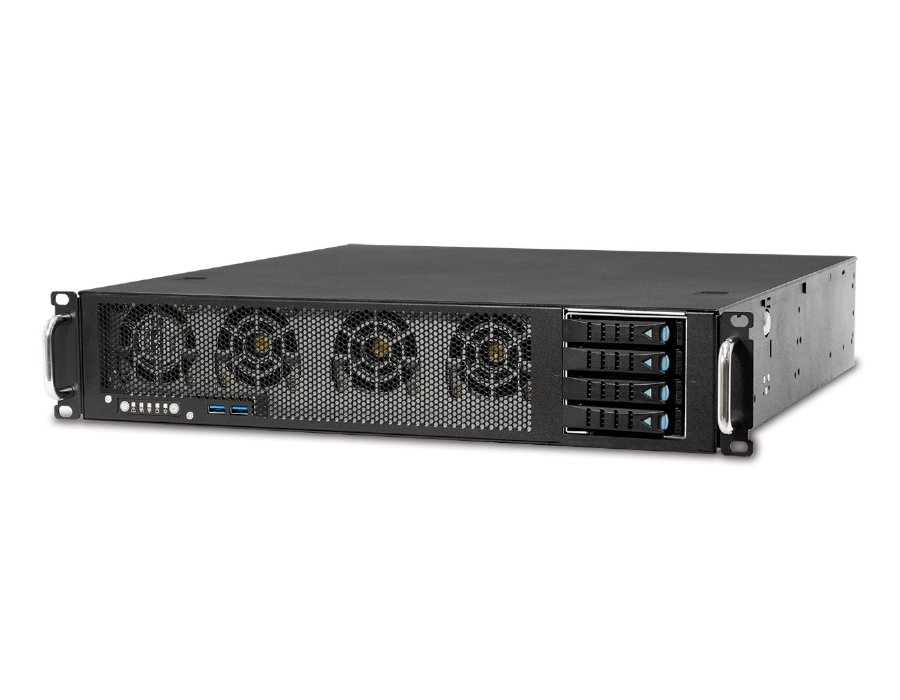

AIC RMC-2E-01 - 2U Edge w/ external 4x 2.5" SATA hot-swap, 4x 6038 fan, Platinum 800W 1+1 Power, 2x full-height slots,1x low profile slot w/o rail

SKU: CAAICRMC-2E000-01
Brand: AIC
2U Rackmount Edge Chassis - external 4x 2.5" SATA hot-swap (w/o SATA cable), 4x 6038 fan, 800W 1+1 redundant power supply, 2x full-height slots,1x low profile slot rear window, with 1x PCIe Gen3 x16 slot riser card, 1x PCIe Gen4 x8 slot riser card, w/o rail
Price: $520.00
AIC RMC-2E-01 - 2U Edge w/ external 4x 2.5" SATA hot-swap, 4x 6038 fan, Platinum 800W 1+1 Power, 2x full-height slots,1x low profile slot w/o rail
AIC RMC-2E-01 - 2U Edge w/ external 4x 2.5" SATA hot-swap, 4x 6038 fan, Platinum 800W 1+1 Power, 2x full-height slots,1x low profile slot w/o rail
AIC RMC-2E-01 - 2U Edge w/ external 4x 2.5" SATA hot-swap, 4x 6038 fan, Platinum 800W 1+1 Power, 2x full-height slots,1x low profile slot w/o rail
AIC RMC-2E-01 - 2U Edge w/ external 4x 2.5" SATA hot-swap, 4x 6038 fan, Platinum 800W 1+1 Power, 2x full-height slots,1x low profile slot w/o rail
AIC RMC-2E-01 - 2U Edge w/ external 4x 2.5" SATA hot-swap, 4x 6038 fan, Platinum 800W 1+1 Power, 2x full-height slots,1x low profile slot w/o rail
AIC RMC-2E-01 - 2U Edge w/ external 4x 2.5" SATA hot-swap, 4x 6038 fan, Platinum 800W 1+1 Power, 2x full-height slots,1x low profile slot w/o rail
AIC RMC-2E-01 - 2U Edge w/ external 4x 2.5" SATA hot-swap, 4x 6038 fan, Platinum 800W 1+1 Power, 2x full-height slots,1x low profile slot w/o rail
AIC RMC-2E-01 - 2U Edge w/ external 4x 2.5" SATA hot-swap, 4x 6038 fan, Platinum 800W 1+1 Power, 2x full-height slots,1x low profile slot w/o rail
AIC RMC-2E-01 - 2U Edge w/ external 4x 2.5" SATA hot-swap, 4x 6038 fan, Platinum 800W 1+1 Power, 2x full-height slots,1x low profile slot w/o rail
AIC RMC-2E-01 - 2U Edge w/ external 4x 2.5" SATA hot-swap, 4x 6038 fan, Platinum 800W 1+1 Power, 2x full-height slots,1x low profile slot w/o rail
AIC RMC-2E-01 - 2U Edge w/ external 4x 2.5" SATA hot-swap, 4x 6038 fan, Platinum 800W 1+1 Power, 2x full-height slots,1x low profile slot w/o rail
AIC RMC-2E-01 - 2U Edge w/ external 4x 2.5" SATA hot-swap, 4x 6038 fan, Platinum 800W 1+1 Power, 2x full-height slots,1x low profile slot w/o rail
AIC RMC-2E-01 - 2U Edge w/ external 4x 2.5" SATA hot-swap, 4x 6038 fan, Platinum 800W 1+1 Power, 2x full-height slots,1x low profile slot w/o rail
AIC RMC-2E-01 - 2U Edge w/ external 4x 2.5" SATA hot-swap, 4x 6038 fan, Platinum 800W 1+1 Power, 2x full-height slots,1x low profile slot w/o rail
AIC RMC-2E-01 - 2U Edge w/ external 4x 2.5" SATA hot-swap, 4x 6038 fan, Platinum 800W 1+1 Power, 2x full-height slots,1x low profile slot w/o rail
AIC RMC-2E-01 - 2U Edge w/ external 4x 2.5" SATA hot-swap, 4x 6038 fan, Platinum 800W 1+1 Power, 2x full-height slots,1x low profile slot w/o rail
(Click to see larger image and other views)
Product Details

The RMC-2E chassis is AIC first model focus on Edge-Computing appliance product. Its flexibility of support both front and rear I/O is the biggest feature on ALL application scenarios. The flexible and variable can easily reach through simple change/adjustment on the field. The 450mm depth is easy to implement into all cabinets.


Key Features

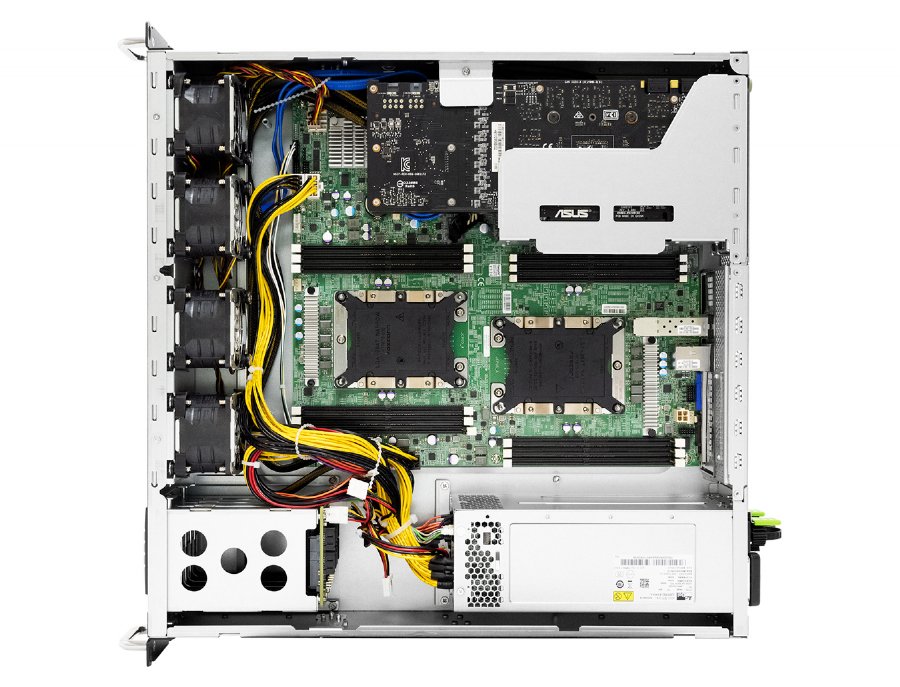

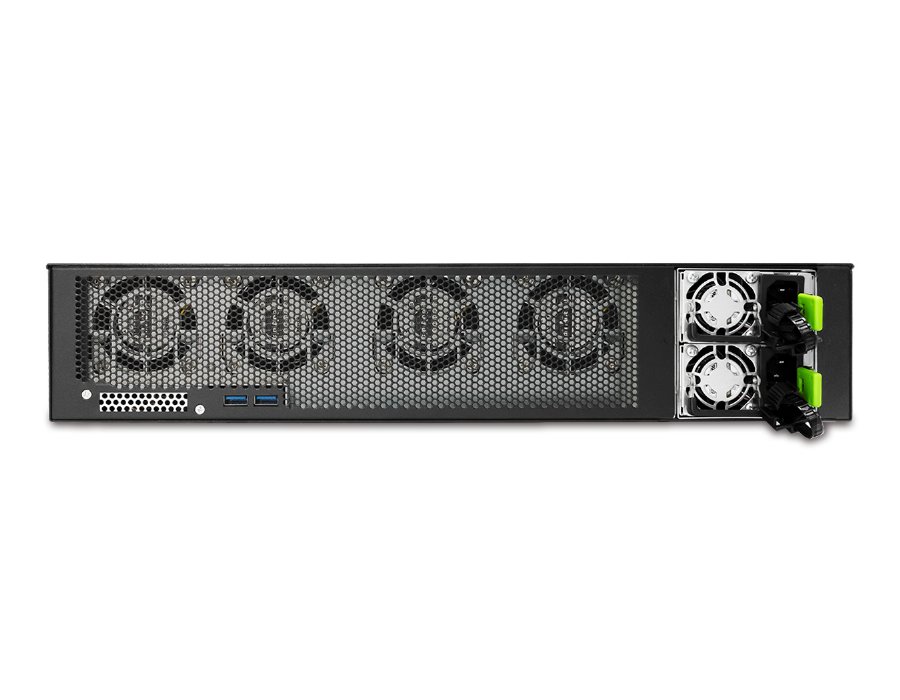

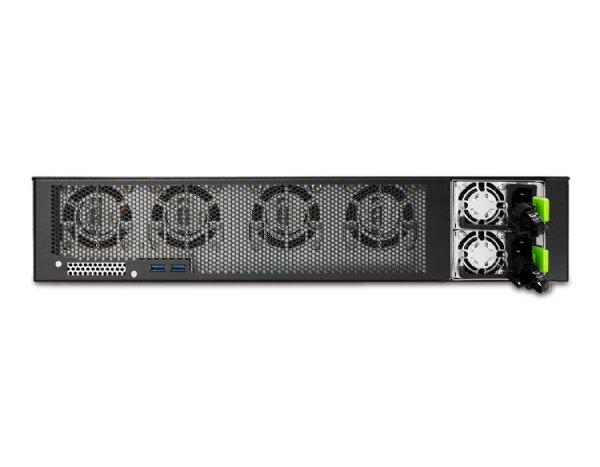

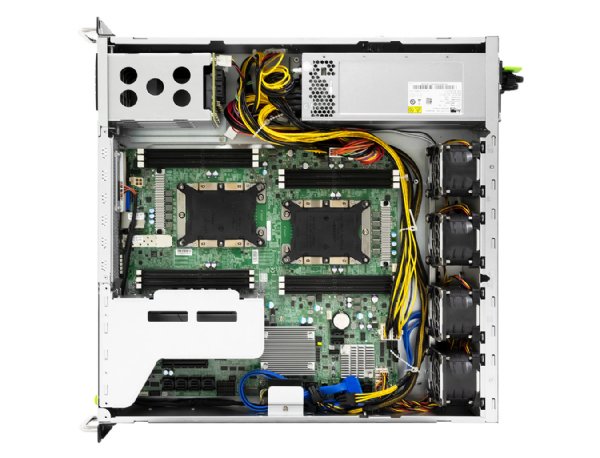

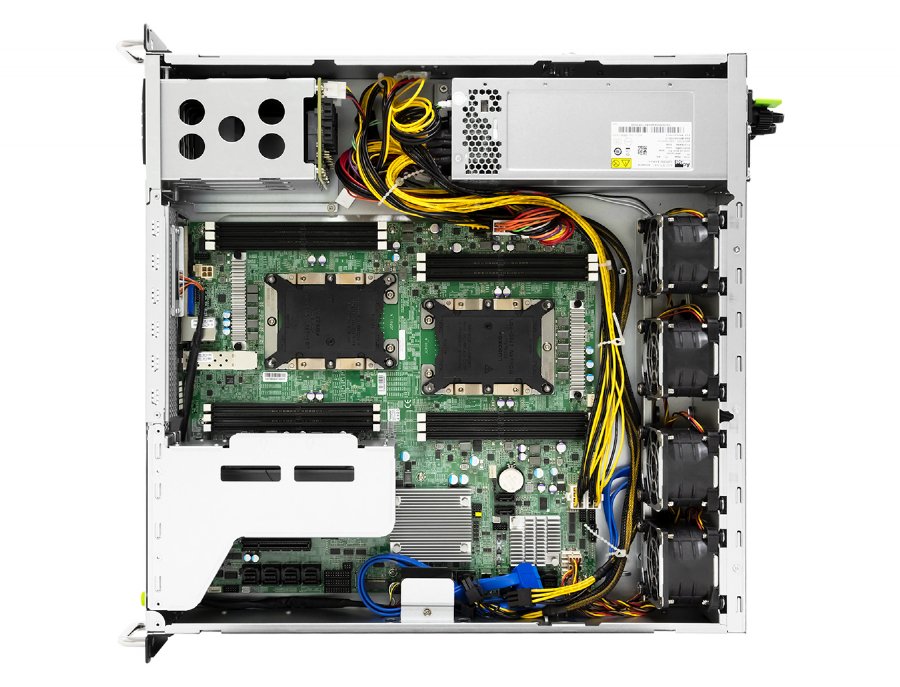

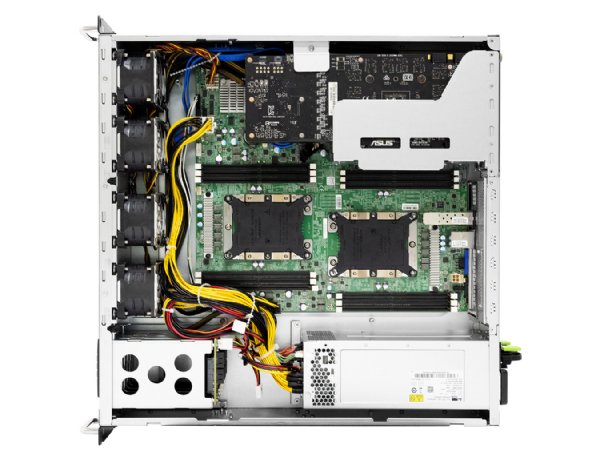

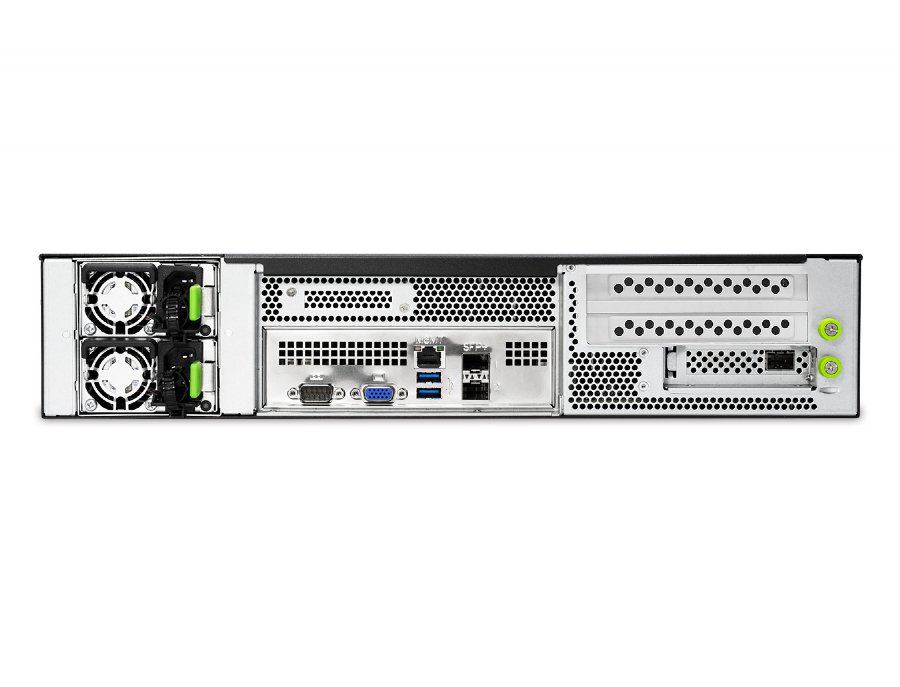

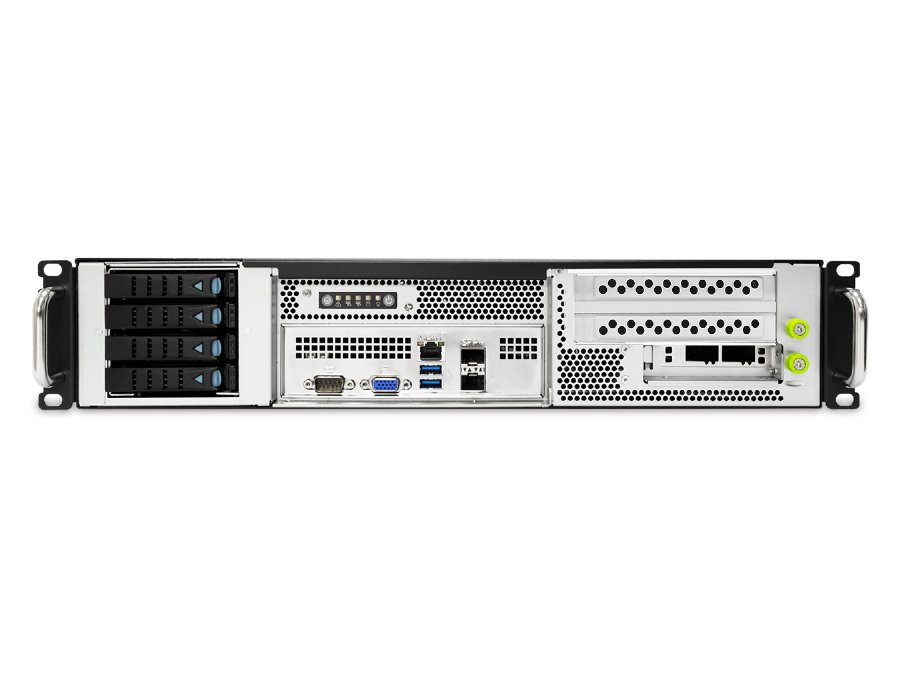

• Flexible front I/O and rear I/O application options
• 4 x easy swap fans for superior cooling
• Supports GPU card with 2U riser card

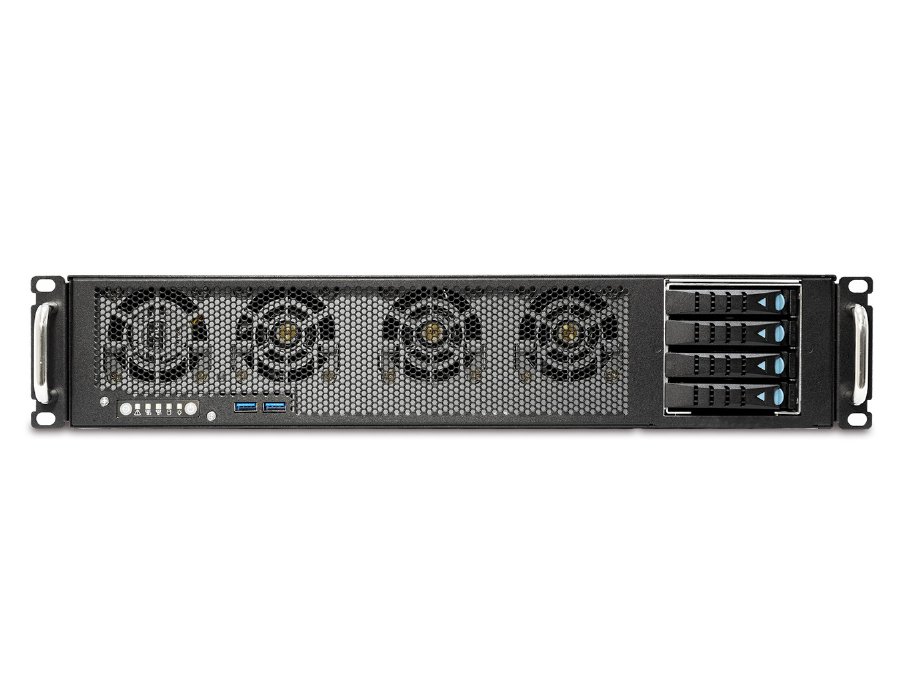

• Supports up to 4 x 2.5” external hot swap drive bays
• Includes a redundant PSU 80+ Platinum
• Two front access USB 3.0 ports
• Short-depth design for space critical applications
• Supports 2 post or 4 post rack deployment

Dimensions (W x D x H)
• mm : 438 x 450 x 88
• inches : 17.2 x 17.7 x 3.5
Industry Standard
EIA-RS310D
Material
Heavy-duty preplated SPGC cold-rolled steel
Color
Black
Cooling
Standard :
•  4 x 60x38mm easy swap fans
Power Supply
Standard:
•  800W 1+1 redundant PSU 80+ Platinum
Expansion Slot
Standard:
•  1 x PCIe x16 Gen3 single slot + 1 x PCIe x8 Gen4 single slot
Options:
•  1 x PCIe x16 Gen4 dual slot + 1 x PCIe x8 Gen4 single slot
•  7 x low profile slots
Front Panel
•  System power on/off
•  System reset
•  2 x USB ports
LED Indicators
• Power status
• LAN activity
• Drive activity
System Board
Up to 12” (W) x 13” (D) EATX compliant MB
Drive Bays
External : 4 x 2.5”
Backplanes
2pcs dual ports SATA BP to support 4 x SATA
Storage Temperature
0ºC(32ºF) ~ 50ºC(122ºF)
Humidity
5%~95% non-condensing
Gross Weight (w/ PSU; w/o Rail)
•  kgs: 13
•  lbs: 28.5
Package Dimension (W x D x H)
•  mm : 655 x 580 x 244
•  inches : 25.8 x 22.8 x 9.6
