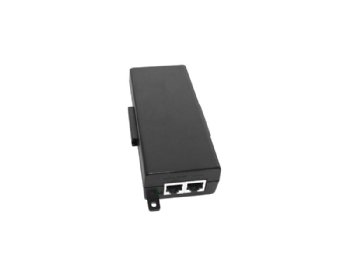

    Cerio POE-PG30I 30Watt 10/100/1000M/Multi Gigabit Passive PoE+ Injector

    Our Products: Power Over Ethernet
    Cerio POE-PG30I 30Watt 10/100/1000M/Multi Gigabit Passive PoE+ Injector
    Cerio POE-PG30I 30Watt 10/100/1000M/Multi Gigabit Passive PoE+ Injector
    Cerio POE-PG30I 30Watt 10/100/1000M/Multi Gigabit Passive PoE+ Injector
    Cerio POE-PG30I 30Watt 10/100/1000M/Multi Gigabit Passive PoE+ Injector
    Cerio POE-PG30I 30Watt 10/100/1000M/Multi Gigabit Passive PoE+ Injector
    Cerio POE-PG30I 30Watt 10/100/1000M/Multi Gigabit Passive PoE+ Injector
    Cerio POE-PG30I 30Watt 10/100/1000M/Multi Gigabit Passive PoE+ Injector
    Cerio POE-PG30I 30Watt 10/100/1000M/Multi Gigabit Passive PoE+ Injector
    Cerio POE-PG30I 30Watt 10/100/1000M/Multi Gigabit Passive PoE+ Injector
    Cerio POE-PG30I 30Watt 10/100/1000M/Multi Gigabit Passive PoE+ Injector
    Cerio POE-PG30I 30Watt 10/100/1000M/Multi Gigabit Passive PoE+ Injector
    Cerio POE-PG30I 30Watt 10/100/1000M/Multi Gigabit Passive PoE+ Injector
    (Click to see larger image and other views)
    SKU: POE-PG30I
    Brand: Cerio Corporation
    Units in Stock: 15
    Cerio's POE-PG30I Gigabit PoE+ Injector compatible with 802.3af/at Power Over Ethernet and provides DC 56 Volt over Ethernet cables. It supports up to 30Watt PoE+ maximum output power and provides 10/100/1000 Mbps Gigabit Ethernet connection ability. The CERIO Gigabit PoE+ Injector can simultaneously transmit network data and power to the PD equipment through the UTP Ethernet Cable transmission.
    MPN: POE-PG30I
    UPC: 4712757151374
    Price: $21.75
    Product Details

    POE-PG30I

    30Watt 10/100/1000M Gigabit PoE+ Injector

    POE VS. DEPLOYMENT APPLICATIONS


    Higlight Features
    • Complying with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX and IEEE 802.3ab 1000Base-T standard.
    • Supports 10/100/1000Mbps Gigabit RJ45 Ethernet Connection.
    • Supports PIN 1/2,3/6 and 4/5,7/8 power pin.
    • Internal power design and supports 56V PoE+ output.
    • Provides Passive PoE+ power level and PoE max power up to 30Watt Class4 PoE+ output.
    • Support PSE / PoE Power Over Ethernet function which can provide both data and power for distances of up to 100 meters (328 feet) from the power source when using CAT 5 or up cabling.
    • Over Current Protection and Short-circuit Protection.
    • Supports Desktop, Wall mounting and Units Combination for easy to bundles organize the Ethernet cables.
    Functionality
    The CERIO POE-PG30I is designed to supply operational power to wireless LAN devices such as PoE access point bridges, routers, and surveillance cameras. With Power over Ethernet devices installed, the system administrator only has to use a single RJ-45 Ethernet cable to carry both power and data to each device. Moreover, it supports PIN 1/2,3/6 and 4/5,7/8 power pin designed, no matter the PD devices is designed Type-A or Type-B all can supply power automatically. The output power will be dependent on the power rating of the power supply that one chooses to use. It brings a great economic benefits to the monitoring surveillance system.
    Long Distance Application
    CERIO PoE+ Injector can provide both data and power for distances of up to 100 meters (328 feet) from the power source when using CAT 5 or up cabling.
    ESD Protection
    POE-PG30I supports ESD, Electro Static Discharge protection includes Over Voltage protection and Short Circuit Protection ensuring device safety.
    Additional Benefits
    Some additional benefits of Cerio POE Injector include cost saving, convenience in network planning, and higher reliability.
    Easy installation
    Plug-and-Play, requires no configuration.

    POE-PG30I Application
    POE-PG30I Hardware Overview
    Units Combination
