    Fanless 12V Intel Celeron N3160 + 2 LAN / DisplayPort + 2HDMI

    Our Products: Custom Computers
    Fanless 12V Intel Celeron N3160 + 2 LAN / DisplayPort + 2HDMI
    Fanless 12V Intel Celeron N3160 + 2 LAN / DisplayPort + 2HDMI
    Fanless 12V Intel Celeron N3160 + 2 LAN / DisplayPort + 2HDMI
    Fanless 12V Intel Celeron N3160 + 2 LAN / DisplayPort + 2HDMI
    Fanless 12V Intel Celeron N3160 + 2 LAN / DisplayPort + 2HDMI
    Fanless 12V Intel Celeron N3160 + 2 LAN / DisplayPort + 2HDMI
    Fanless 12V Intel Celeron N3160 + 2 LAN / DisplayPort + 2HDMI
    Fanless 12V Intel Celeron N3160 + 2 LAN / DisplayPort + 2HDMI
    (Click to see larger image and other views)
    SKU: SY420U591-3160
    Brand: Tierratek
    Fanless 12V Intel Celeron N3160 + 2 LAN / DisplayPort + 2HDMI
    Standard Features
    Barebone Computers: HBJC420U591-3160-B Thin NUC Fanless Barebone, Braswell, Celeron N3160, 2*HDMI, DisplayPort, mSATA (NO WIFI)
    DDR3L 1600MHz SODIMM: Mushkin 992038 Low Voltage 8GB DDR3 SODIMM PC-12800 1600MHz 11-11-11-28 1.35V
    mSATA: 256GB SSD MSATA
    Desktop Operating Systems: No Items from this Category have been selected
    Assembly and Testing: SYSTEM ASSEMBLY, TESTING AND 24-HR BURN
    MPN: SY420U591W-3160
    Price: $432.18
    Previous Item Previous Item   Next Item Next Item
    Product Details

    - INTEL® Braswell N3160 SoC Processor

    - Embedded Long-life Series, Planned Lifecycle Through Q1'2031
    - Supports 2 x HDMI and 1 x DP for 3 Independent Display
    - 12V DC-In & 2 x LAN
    - ECO-design for EuP/ErP


    Motherboard Specification
    CPU Fanless Intel® Celeron N3160 SoC, 1.60GHz – 2.24GHz Burst, Quad-Core, 6W TDP, with AES-NI support
    Memory 1 x 204-pin SODIMM DDR3L-1600 Dual Channel 1.35V required (up to 8 GB)
    * 1600MHz memory will run at 1600MHz
    * 1333MHz memory will run at 1066MHz
    * 1066MHz memory not supported
    Graphics Intel® HD Graphics 400
    LAN 2 x Intel I211-AT PCI-E Gigabit LAN
    Audio Realtek ALC662VD HD Audio
    Storage 1 x Full Size mSATA/mini-PCIE Shared Slot
    WiFi / Mini-PCIE / SIM 1 x Half size Mini-PCI Express Slot Available
    1 x SIM Socket paired with Full Size mSATA/mini-PCIE Shared Slot    		 WiFi + Bluetooth
    1 x SIM Socket paired with Full Size mSATA/mini-PCIE Shared Slot
    Chassis Specification
    Product size 129 * 109 * 34 mm
    Material Lightweight aluminum alloy with extruded aluminum IO panel
    Storage Bay NA

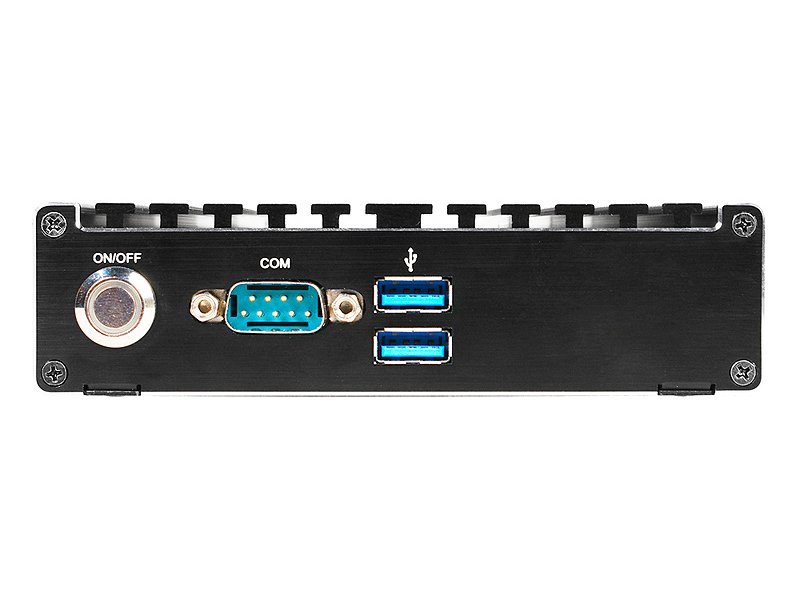

    Front I/O Port 1 * Power Button
    1 * Power LED
    1 * RS232/422/485 COM port
    2 * USB 3.0

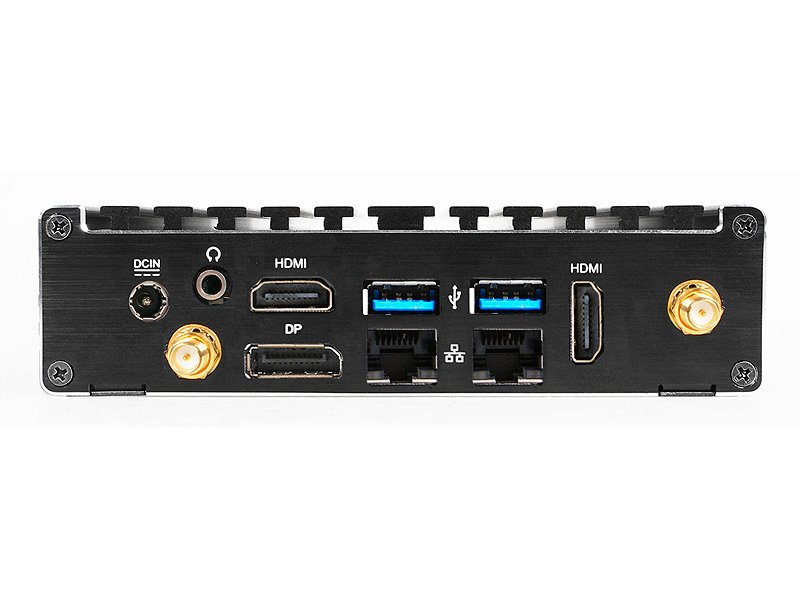

    Rear I/O Port 1 * +12V 2.5mm Diameter DC-In Power Jack
    1 * Line out / MIC in Combo Jack
    1 * Display Port 1.1 (upto 2560 x 1600 @ 60Hz or 3840 x 2160 @ 30Hz)
    2 * HDMI 1.4b (1920 x 1080 @ 60Hz)
    2 * USB 3.0 port
    2 * RJ-45 port
    2 * SMA Connector for WiFi Antenna
    Power Adapter : AC_90~240V / DC_12V/40W
    Environment Operating Temperature : 0°C ~ 40°C with air flow
    Storage Temperature : -20°C ~ 80°C
    Functional Digital Signage, Set Top Box, Thin Client, Car Entertainment, Smart Mini PC, POS/POI, KIOSK, HTPC
    Certificate CE,FCC,ErP For Barebone
    CE,FCC,TUV,UL,CCC,CB,ErP For Power Adapter
