    HBFDF04-6412-VT-A1- Fanless Intel Celeron J6412, 2.00GHz , 2.60GHz Burst, 4-Core 4-Thread

    Our Products: Barebone Computers
    HBFDF04-6412-VT-A1- Fanless Intel Celeron J6412, 2.00GHz , 2.60GHz Burst, 4-Core 4-Thread
    HBFDF04-6412-VT-A1- Fanless Intel Celeron J6412, 2.00GHz , 2.60GHz Burst, 4-Core 4-Thread
    HBFDF04-6412-VT-A1- Fanless Intel Celeron J6412, 2.00GHz , 2.60GHz Burst, 4-Core 4-Thread
    HBFDF04-6412-VT-A1- Fanless Intel Celeron J6412, 2.00GHz , 2.60GHz Burst, 4-Core 4-Thread
    HBFDF04-6412-VT-A1- Fanless Intel Celeron J6412, 2.00GHz , 2.60GHz Burst, 4-Core 4-Thread
    HBFDF04-6412-VT-A1- Fanless Intel Celeron J6412, 2.00GHz , 2.60GHz Burst, 4-Core 4-Thread
    HBFDF04-6412-VT-A1- Fanless Intel Celeron J6412, 2.00GHz , 2.60GHz Burst, 4-Core 4-Thread
    HBFDF04-6412-VT-A1- Fanless Intel Celeron J6412, 2.00GHz , 2.60GHz Burst, 4-Core 4-Thread
    HBFDF04-6412-VT-A1- Fanless Intel Celeron J6412, 2.00GHz , 2.60GHz Burst, 4-Core 4-Thread
    HBFDF04-6412-VT-A1- Fanless Intel Celeron J6412, 2.00GHz , 2.60GHz Burst, 4-Core 4-Thread
    (Click to see larger image and other views)
    SKU: HBFDF04-6412-VT-A1
    Brand: Jetway
    Units in Stock: 4
    Fanless Intel® Celeron J6412, 2.00GHz 2.60GHz Burst, 4-Core 4-Thread, Wall Mount, DIN Rail, 60W 12V AC Adapter
    MPN: HBFDF04-6412-VT-A1
    Price: $330.40
    Others have been interested in these additional items...
    Check the check boxes next to the additional products that you would like to add to the shopping cart, then click on the "Add to Cart" button above. A check box is not shown if a product requires that you select an option or fill out a field. () indicates a required accessory.
    PoE Pro PC Power Bundle
    PoE Pro PC Power Bundle
    Price $95.00
    PoE Monitor Power Bundle
    PoE Monitor Power Bundle
    Price $125.00
    Product Details

    - Fanless Intel® Elkhart Lake Celeron® J and N Series SoC Processor
    - Long-Life Embedded Class with Planned Lifecycle Through Q1'2036
    - 2 * DDR4-3200MHz Dual Channel SO-DIMM up to 32GB
    - Up to 2 4K HDMI Displays
    - 2 * Intel i225-V 2.5GbE
    - Onboard 32GB eMMC, 3 * M.2 Slots
    - ECO-design for EuP/ErP



    Specification
    Model SeriesFDF04V
    Part Number HBFDF04-6412-V (Non-WIFI)
    HBFDF04i-6412-V (WIFI)    		 HBFDF04-6412-VT (Non-WIFI, TPM 2.0)
    HBFDF04i-6412-VT (WIFI, TPM 2.0)
    Motherboard Specification
    CPUFanless Intel® Celeron J6412, 2.00GHz – 2.60GHz Burst, 4-Core 4-Thread, 10W (Formerly Elkhart Lake)
    Memory2 x 260-pin Dual Channel DDR4-3200 SO-DIMM up to 32GB Total
    GraphicsIntel® UHD Graphics for 10th Gen Intel® Processors
    AudioRealtek ALC662 HD Audio
    LAN2 x Intel I226-V PCIe 2.5GbE
    Storage1 x SATA3 6Gb/s
    1 x M.2 (SATA & PCIe 3.0 x2, M-key, 2242/2280 NVMe)
    Onboard 32GB eMMC
    WiFiM.2 2230 E-key Open Slot for HBFDF04 Series (Non-WIFI)
    WiFi + Bluetooth Installed for HBFDF04i Series (WIFI)
    SIMM.2 3042 B-key Open Slot (USB bus for 3G/4G Modem)
    TPMIntel fTPM 2.0 (PTT) Trusted Computing FirmwareIntel fTPM 2.0 (PTT) Trusted Computing Firmware
    Onboard NUVOTON TPM v2.0
    Chassis Specification
    Enclosure Size193 (W) x 142.4 (D) x 62 (H) mm
    Storage Bay1 * 2.5” SATA Drive Bay

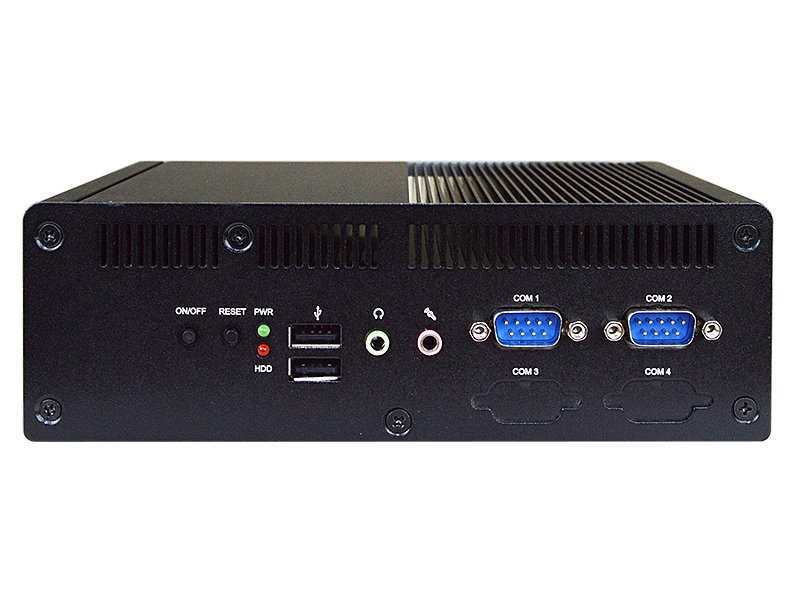

    Front I/O Port 1 Power Button
    1 Reset Button
    1 Power LED
    1 HDD LED
    2 USB 2.0 Ports
    1 3.5mm Line-out Jack
    1 3.5mm Mic-in Jack
    2 Serial Ports (1 * RS232, 1 * RS232/422/485)

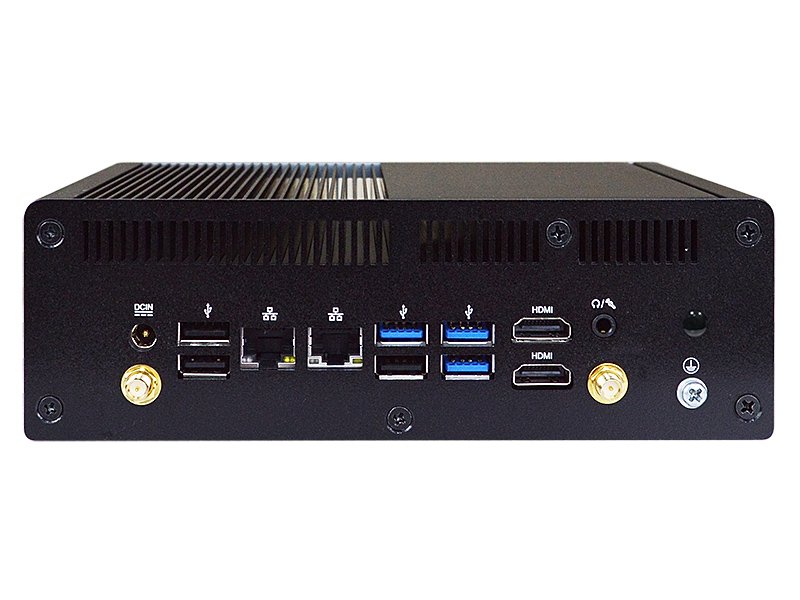

    Rear I/O Port 1 3.5mm Line-out & MIC-in Combo Audio Jack
    1 RJ45 LAN (10/100/1000/2500)
    1 RJ45 LAN (10/100/1000)
    3 USB 3.2 Gen 2 (10 Gb/s)
    3 USB 2.0 Port
    2 HDMI 2.0b (4096 * 2160 @ 60Hz)
    2 Antenna Holes
    1 GND Screw
    1 +12V – 24V 2.5mm Diameter DC Power Jack
    PowerAdapter : AC_90~240V / DC_12V/60W
    EnvironmentOperating Temperature : 0°C ~ 50°C with air flow
    Storage Temperature : -40°C ~ 85°C
    Humidity : 10% ~ 95% RH @40°C (non-condensing)
    ApplicationDigital Signage, POS, Kiosk, Carputer, Industrial PC, Automation, Gaming, Digital Security, Surveillance, Transportation, Medical
    CertificateCE,FCC,ErP For Barebone
    CE,FCC,TUV,UL,CCC,CB,ErP For Power Adapter
    Mechanical Drawing

    Ordering Info
    Part Number Description
    HBFDF04-6412-V Intel Celeron J6412 3.5" SBC, Non-WIFI
    HBFDF04-6412-VT Intel Celeron J6412 3.5" SBC with onboard TPM 2.0, Non-WIFI
    HBFDF04i-6412-V Intel Celeron J6412 3.5" SBC, WIFI
    HBFDF04i-6412-VT Intel Celeron J6412 3.5" SBC with onboard TPM 2.0, WIFI
    HCSFDMWM01B-F (Incl) Wall mount
    HBDRK-FD-S DIN RAIL Kits
    L01AS053-F (Incl) Adapter 12V 5A 60W LEVEL6
    HNSCOMWFCB375NF-F (for WIFI version) A/B/G/N/AC + BT M.2 card
    J05-ANT-GX57245-F (for WIFI version) Dual band WiFi antenna
    HNS130MSHDHD02-F (Incl) 2.5" Mounting Rails
    LCSCHBFDXXX-F (Incl) Screws pack
