    In-Win IW-RS108-07-R750.OL - 1U Server Chassis Redundant 750W Power Supply with OCULINK x 4 Backplane

    Our Products: Chassis
    SKU: CAIW-RS108-07-R750.OL
    Brand: In-Win
    In-Win IW-RS108-07 - 1U Server Chassis Redundant 750W Power Supply with with OCULINK x 4 Backplane. Rear IO shield available on request. Please provide the motherboard model to your sales rep.
    MPN: IW-RS108-07-R750.OL
    Price: $931.02
    In-Win IW-RS108-07-R750.OL - 1U Server Chassis Redundant 750W Power Supply with OCULINK x 4 Backplane
    In-Win IW-RS108-07-R750.OL - 1U Server Chassis Redundant 750W Power Supply with OCULINK x 4 Backplane
    In-Win IW-RS108-07-R750.OL - 1U Server Chassis Redundant 750W Power Supply with OCULINK x 4 Backplane
    In-Win IW-RS108-07-R750.OL - 1U Server Chassis Redundant 750W Power Supply with OCULINK x 4 Backplane
    In-Win IW-RS108-07-R750.OL - 1U Server Chassis Redundant 750W Power Supply with OCULINK x 4 Backplane
    In-Win IW-RS108-07-R750.OL - 1U Server Chassis Redundant 750W Power Supply with OCULINK x 4 Backplane
    In-Win IW-RS108-07-R750.OL - 1U Server Chassis Redundant 750W Power Supply with OCULINK x 4 Backplane
    In-Win IW-RS108-07-R750.OL - 1U Server Chassis Redundant 750W Power Supply with OCULINK x 4 Backplane
    In-Win IW-RS108-07-R750.OL - 1U Server Chassis Redundant 750W Power Supply with OCULINK x 4 Backplane
    In-Win IW-RS108-07-R750.OL - 1U Server Chassis Redundant 750W Power Supply with OCULINK x 4 Backplane
    In-Win IW-RS108-07-R750.OL - 1U Server Chassis Redundant 750W Power Supply with OCULINK x 4 Backplane
    In-Win IW-RS108-07-R750.OL - 1U Server Chassis Redundant 750W Power Supply with OCULINK x 4 Backplane
    In-Win IW-RS108-07-R750.OL - 1U Server Chassis Redundant 750W Power Supply with OCULINK x 4 Backplane
    In-Win IW-RS108-07-R750.OL - 1U Server Chassis Redundant 750W Power Supply with OCULINK x 4 Backplane
    In-Win IW-RS108-07-R750.OL - 1U Server Chassis Redundant 750W Power Supply with OCULINK x 4 Backplane
    In-Win IW-RS108-07-R750.OL - 1U Server Chassis Redundant 750W Power Supply with OCULINK x 4 Backplane
    In-Win IW-RS108-07-R750.OL - 1U Server Chassis Redundant 750W Power Supply with OCULINK x 4 Backplane
    In-Win IW-RS108-07-R750.OL - 1U Server Chassis Redundant 750W Power Supply with OCULINK x 4 Backplane
    In-Win IW-RS108-07-R750.OL - 1U Server Chassis Redundant 750W Power Supply with OCULINK x 4 Backplane
    In-Win IW-RS108-07-R750.OL - 1U Server Chassis Redundant 750W Power Supply with OCULINK x 4 Backplane
    (Click to see larger image and other views)
    Previous Item Previous Item   Next Item Next Item
    Others have been interested in these additional items...
    Check the check boxes next to the additional products that you would like to add to the shopping cart, then click on the "Add to Cart" button above. A check box is not shown if a product requires that you select an option or fill out a field. () indicates a required accessory.
    28 inch King Slide Rails Kit for 07 Series Rackmount Case
    28 inch King Slide Rails Kit for 07 Series Rackmount Case
    Price $53.10
    Product Details

    IW-RS108-07

    1U NVMe Hybrid Storage Server

    - Intel® Xeon Scalable & AMD EPYC family compliant
    - Backplanes with Mini-SAS HD and OCuLink connectors
    - Maximum supports U.2 NVMe SSDs x 8; 3.5"/2.5" (15mm) trays x 4, and 2.5" (7mm) trays x 4
    - Flexible storage configuration of 3.5" HDDs and 2.5" SSDs (15mm, 7mm)

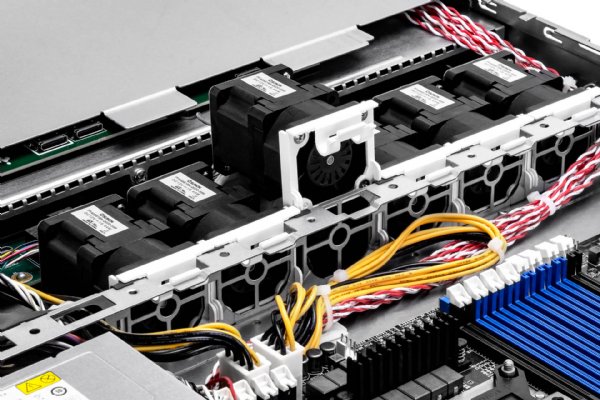

    - Intensive airflow generated by easy-swap cooling fans x 6
    - Full-height PCIe slot x 1 (via riser card)
    - 80 Plus® Platinum 1U redundant PSU(optional)
    - Customized I/O shield backplate for specific motherboards with SGCC material


    Specification
    Industry Standard EIA-RS310D
    M/B Form Factor ATX (12" x 9.6"), CEB (12" x 10.5"), EEB (12" x 13")
    Drive BayTop layer: external 2.5" hot-swap trays (7mm) x 4
     Bottom layer: external 3.5"/2.5" hot-swap trays x 4
    Power Supply Supports:
    750W 1U redundant PSU, 80 Plus Platinum
    Indicator Power LED, LAN1/LAN2 LED, system LED, HDD LED, ID LED
    Front Control Panel Power on/off, reset, NMI, ID SW
    Backplane- Top Layer Host: OCuLink (SFF-8611) x 5, one is for SAS/SATA data transfer rates
    HDD: NVMe/SAS/SATA x 4 (2.5" 7mm)
    Backplane- Bottom Layer

    Host: Mini-SAS HD (SFF-8643) x 1, OCuLink (SFF-8611) x 4
    HDD: NVMe/SAS/SATA x 4 (3.5"/2.5" 15mm)
    Cooling Fan 40 x 56mm PWM easy-swap fans x 6, 21500RPM
    Expansion Slot Full-height PCIe slot x 1 (via riser card)
    Material Material: SGCC
    Thickness: 1.0mm
    Rail Kit Supports 28" tool-less & ball-bearing slide rails
    Product Dimensions (DxWxH; Chassis Only) 676 x 438 x 43.5mm
    (26.6"x17.2"x1.7")
    Package Dimensions (DxWxH) 880 x 610 x 180mm
    Weight (Chassis Only) Net weight: 8.5kg
    Gross weight: 11.92kg
    Cubic Feet 3.41
    Container Information Single packing with pallets:
    20': 200pcs
    40': 440pcs
    40'HQ: 528pcs


    12Gbps Backplane Specifications

    Backplane – Top Layer OCuLink backplane
    Dimension (W x H) 313.9mm x 33.5mm
    Backplane Type Passive
    Host Interface OCuLink (SFF-8611) x 5, one is for SAS/SATA data transfer rates
    HDD Interface NVMe/SAS/SATA x 4 (2.5" 7mm)


    Backplane – Bottom Layer Mini-SAS HD & OCuLink backplane
    Dimension (W x H) 417.7mm x 33.5mm
    Backplane Type Passive
    Host Interface Mini-SAS HD (SFF-8643) x 1, OCuLink (SFF-8611) x 4
    HDD Interface NVMe/SAS/SATA x 4 (3.5"/2.5" 15mm)
