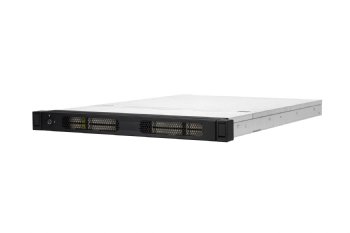

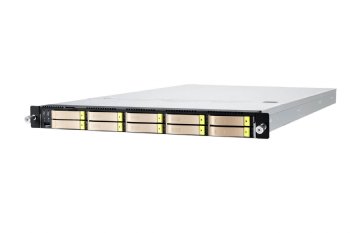

    In-Win IW-RS110-07.OL-R750 - 2U Server Chassis 750W Redundant Power Supply with OCULINK x 10 Backplane

    Our Products: Chassis > Rackmount Chassis > Rack Storage Chassis > 1U Storage Chassis
    In-Win IW-RS110-07.OL-R750 - 2U Server Chassis 750W Redundant Power Supply with OCULINK x 10 Backplane
    In-Win IW-RS110-07.OL-R750 - 2U Server Chassis 750W Redundant Power Supply with OCULINK x 10 Backplane
    In-Win IW-RS110-07.OL-R750 - 2U Server Chassis 750W Redundant Power Supply with OCULINK x 10 Backplane
    In-Win IW-RS110-07.OL-R750 - 2U Server Chassis 750W Redundant Power Supply with OCULINK x 10 Backplane
    In-Win IW-RS110-07.OL-R750 - 2U Server Chassis 750W Redundant Power Supply with OCULINK x 10 Backplane
    In-Win IW-RS110-07.OL-R750 - 2U Server Chassis 750W Redundant Power Supply with OCULINK x 10 Backplane
    In-Win IW-RS110-07.OL-R750 - 2U Server Chassis 750W Redundant Power Supply with OCULINK x 10 Backplane
    In-Win IW-RS110-07.OL-R750 - 2U Server Chassis 750W Redundant Power Supply with OCULINK x 10 Backplane
    In-Win IW-RS110-07.OL-R750 - 2U Server Chassis 750W Redundant Power Supply with OCULINK x 10 Backplane
    In-Win IW-RS110-07.OL-R750 - 2U Server Chassis 750W Redundant Power Supply with OCULINK x 10 Backplane
    In-Win IW-RS110-07.OL-R750 - 2U Server Chassis 750W Redundant Power Supply with OCULINK x 10 Backplane
    In-Win IW-RS110-07.OL-R750 - 2U Server Chassis 750W Redundant Power Supply with OCULINK x 10 Backplane
    In-Win IW-RS110-07.OL-R750 - 2U Server Chassis 750W Redundant Power Supply with OCULINK x 10 Backplane
    In-Win IW-RS110-07.OL-R750 - 2U Server Chassis 750W Redundant Power Supply with OCULINK x 10 Backplane
    In-Win IW-RS110-07.OL-R750 - 2U Server Chassis 750W Redundant Power Supply with OCULINK x 10 Backplane
    In-Win IW-RS110-07.OL-R750 - 2U Server Chassis 750W Redundant Power Supply with OCULINK x 10 Backplane
    In-Win IW-RS110-07.OL-R750 - 2U Server Chassis 750W Redundant Power Supply with OCULINK x 10 Backplane
    In-Win IW-RS110-07.OL-R750 - 2U Server Chassis 750W Redundant Power Supply with OCULINK x 10 Backplane
    In-Win IW-RS110-07.OL-R750 - 2U Server Chassis 750W Redundant Power Supply with OCULINK x 10 Backplane
    In-Win IW-RS110-07.OL-R750 - 2U Server Chassis 750W Redundant Power Supply with OCULINK x 10 Backplane
    (Click to see larger image and other views)
    SKU: CAIW-RS110-07.OL-R750
    Brand: In-Win
    In-Win IW-RS110-07.OL-R750 - 2U Server Chassis 750W Redundant Power Supply with OCULINK x 10 Backplane
    MPN: IW-RS110-07-R750.OL
    Price: $919.22
    Previous Item Previous Item   Next Item Next Item
    Others have been interested in these additional items...
    Check the check boxes next to the additional products that you would like to add to the shopping cart, then click on the "Add to Cart" button above. A check box is not shown if a product requires that you select an option or fill out a field. () indicates a required accessory.
    28 inch King Slide Rails Kit for 07 Series Rackmount Case
    28 inch King Slide Rails Kit for 07 Series Rackmount Case
    Price $53.10
    Product Details

    IW-RS110-07

    1U NVMe Hybrid Storage Server



    - Intel® Xeon Scalable family compliant
    - Backplanes with Mini-SAS HD, Oculink or Slimline connectors
    - 1U with 10 x hot-swappable 2.5" U.2 NVMe/SAS/SATA SSD bays
    - Supports full-height PCIe slot x 1 (via riser card)
    - Low acoustic noise and reduced vibrations for greater reliability
    - Supports single or 1U 1+1 Redundant PSU
    - Customizes the I/O Shield back plate for specific motherboards with SGCC material


    Specification
    Industry Standard EIA-RS310D
    M/B Form Factor ATX (12" x 9.6"), CEB (12" x 10.5"), EEB (12" x 13")

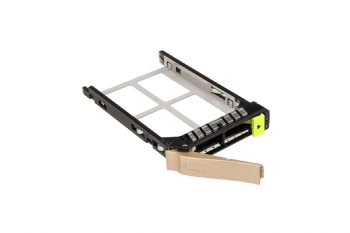

    Drive Bay Supports external 2.5" screwless hot-swap SSD trays x 10

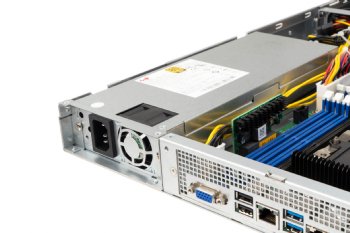

    Power Supply Supports:
    750W 1U 1+1 redundant PSU, 80 Plus Platinum
    650W 1U single PSU, 80 Plus Gold
    Indicator Power LED, LAN1/LAN2 LED, System LED, HDD LED, ID LED
    Front Control Panel Power on/off, Reset, NMI, ID SW, USB 3.0 x 1
    Backplane Type-1 Host: Mini-SAS HD (SFF-8643) x 3, Slimline (SFF-8654) x 10
    SSD: NVMe/SAS/SATA x 10
    Backplane Type-2 Host: Mini-SAS HD (SFF-8643) x 3, Oculink (SFF-8611) x 10
    SSD: NVMe/SAS/SATA x 10

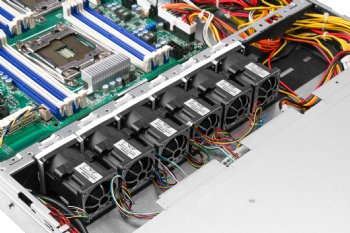

    Cooling Fan 40 x 56mm PWM easy-swap fans x 6, 21500RPM modular design with anti-vibration

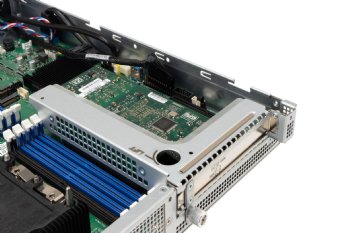

    Expansion Slot Full-height PCIe slot x 1 (via riser card)
    Material Material: SGCC
    Thickness: 1.0mm

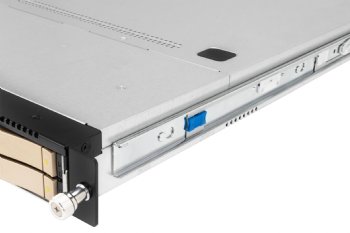

    Rail Kit Supports 28" tool-less & ball-bearing slide rails
    Product Dimensions (DxWxH; Chassis Only) 676.5 x 438 x 43.4mm
    (26.6" x 17.2" x 1.7")
    Package Dimensions (DxWxH) 820 x 590 x 175mm
    Weight (Chassis Only) Net weight: 7.32kg
    Gross weight: 10.12kg
    Cubic Feet 2.99
    Container Information Single packing with pallets:
    20': 200pcs
    40': 460pcs
    40' HQ: 552pcs


    12Gb/s Backplane Specifications

    Backplane Type-1 Mini-SAS HD & Slimline Backplane
    Dimensions (W x H) 400mm x 37.3mm
    Backplane Type Passive
    Host Interface Mini-SAS HD (SFF-8643) x 3, Slimline (SFF-8654) x 10
    HDD Interface NVMe/SAS/SATA x 10


    Backplane Type-2 Mini-SAS HD & Oculink Backplane
    Dimensions (W x H) 400mm x 37.3mm
    Backplane Type Passive
    Host Interface Mini-SAS HD (SFF-8643) x 3, Oculink (SFF-8611) x 10
    HDD Interface NVMe/SAS/SATA x 10
