W-RS216-07

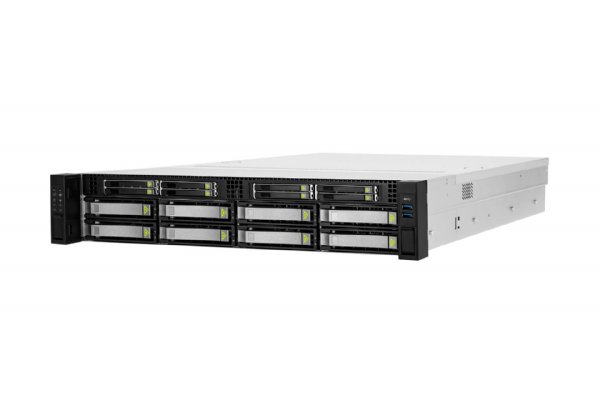

2U NVMe Hybrid Storage Server

---

- Intel^® Xeon Scalable & AMD EPYC family compliant
- Backplanes with Mini-SAS HD or OCuLink connectors (compatible with PCIe 4.0)
- Full range of storage configurations: 3.5" HDDs and 2.5" SSDs (15mm, 7mm)
- 3.5"/2.5" (15mm) trays x 8, pair optional 2.5" (15mm) trays or 2.5"(7mm) trays
- Maximum supports U.2 NVMe SSDs x 16
- Rear drive bays support 2 x 2.5" SAS/SATA SSDs for system disks
- 550W/800W/1200W/1600W CRPS, 80 Plus^® Platinum (optional)
- High-speed cooling fans for excellent thermal performance

Specification
Industry Standard	EIA-RS310D
M/B Form Factor	ATX (12" x 9.6"), CEB (12" x 10.5"), EEB (12" x 13")

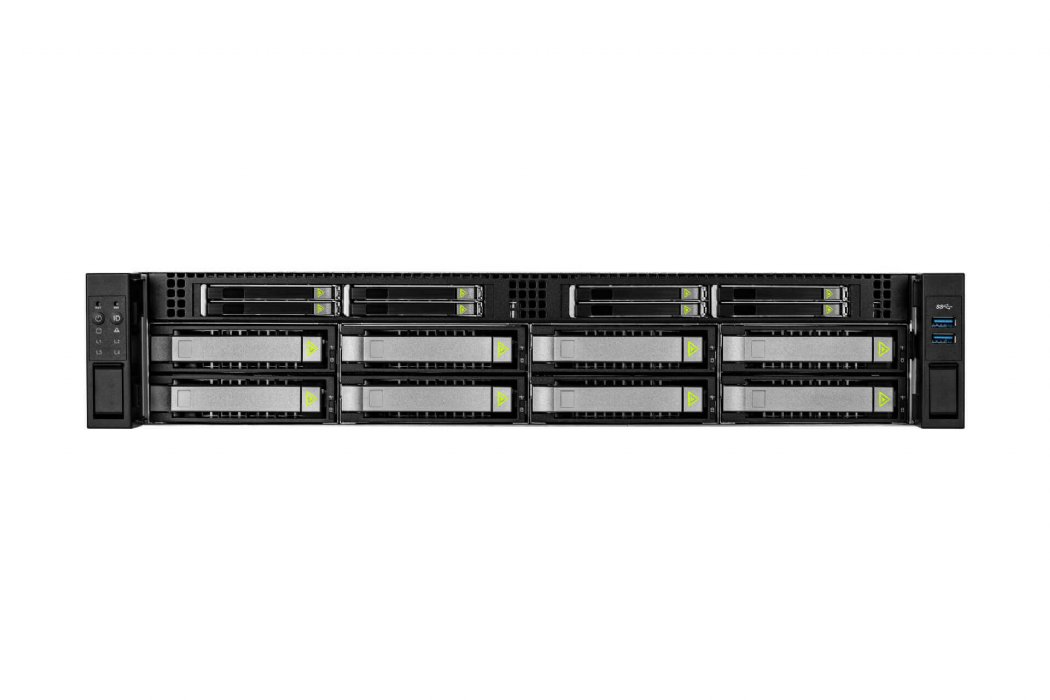

Drive Bay	• Top layer: maximum supports external 2.5" hot-swap trays (15mm) x 4 or 2.5" hot-swap trays (7mm) x 8 • Bottom layer: external 3.5"/2.5" hot-swap trays x 8 • Rear 2.5" hot-swap SSD trays x 2 (supports SAS 12Gbps)
Power Supply	Supports: • Form factor: 80 Plus Platinum CRPS • Watt: 550W/800W/1200W/1600W
Indicator	Power LED, LAN1/LAN2/LAN3/LAN4/LED, system LED, HDD LED
Front Control Panel	Power on/off, reset, NMI, ID SW/ID LED, USB 3.0 x 2
Backplane- Top Layer Type 1	• Host: OCuLink (SFF-8611) x 3, one is for SAS/SATA transfer rates • HDD: SAS/SATA/NVMe SSDs x 2 (2.5" 15mm) • Backplane cage kits pre-installed x 2pcs with 2-drive capacity of each

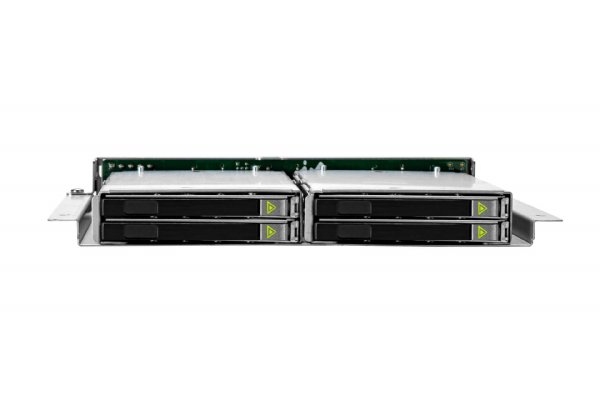

Backplane- Top Layer Type 2	• Host: OCuLink (SFF-8611) x 5, one is for SAS/SATA transfer rates • HDD: SAS/SATA/NVMe SSDs x 4 (2.5" 7mm) • Backplane cage kits pre-installed x 2pcs with 4-drive capacity of each
Backplane- Bottom Layer	• Host: Mini-SAS HD (SFF-8643) x 1, OCuLink (SFF-8611) x 4 • HDD: SAS/SATA/NVMe SSDs x 4 (3.5"/2.5" 15mm) • Backplanes pre-installed x 2pcs
Cooling Fan	• 80 x 38mm PWM hot-swap fans x 4, 12000RPM • Modular design with anti-vibration
Expansion Slot	Low-Profile PCIe slots x 7
Material	• Material: SGCC • Thickness: 1.2mm
Rail Kit	Supports 28" tool-less & ball-bearing slide rails
Product Dimensions (DxWxH; Chassis Only)	660 x 448 x 87.5mm (26" x 17.6" x 3.4")
Package Dimensions (DxWxH)	905 x 610 x 228mm
Weight (Chassis Only)	• Net weight:16.14kg • Gross weight:19.60kg
Cubic Feet	4.44
Container Information	Single packing with pallets: • 20': 160pcs • 40': 336pcs • 40' HQ: 378pcs

12Gbps Backplane Specifications

Backplane- Top Layer Type 1	OCuLink backplane cage kit (Pre-installed x 2pcs with 2-drive capacity of each)
Dimension (W x H)	163.5mm x 24.4mm
Backplane Type	Passive
Host Interface	OCuLink (SFF-8611) x3,one is for SAS/SATA transfer rates
HDD Interface	SAS/SATA/ NVMe SSDs x 2 (2.5" 15mm)

Backplane- Top Layer Type 2	OCuLink Backplane Cage Kit (Pre-installed x 2pcs with 4-drive capacity of each)
Dimension (W x H)	161.5mm x 24.7mm
Backplane Type	Passive
Host Interface	OCuLink (SFF-8611) x5, one is for SAS/SATA transfer rates.
HDD Interface	SAS/SATA/ NVMe SSD x 4 (2.5" 7mm)

Backplane-Bottom Layer	Mini-SAS HD & OCuLink Backplane (Pre-installed x 2pcs)
Dimension (W x H)	404.5mm x 23mm
Backplane Type	Passive
Host Interface	Mini-SAS HD (SFF-8643) x1 , OCuLink (SFF-8611) x4
HDD Interface	SAS/SATA/NVMe SSDs x 4 (3.5"/2.5" 15mm)
