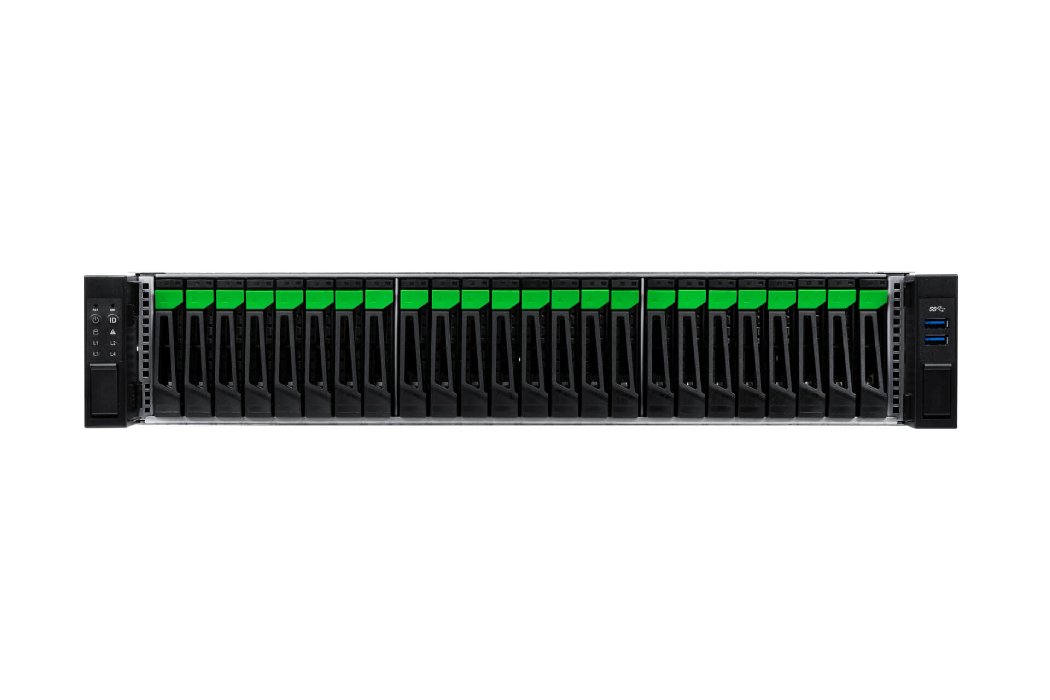

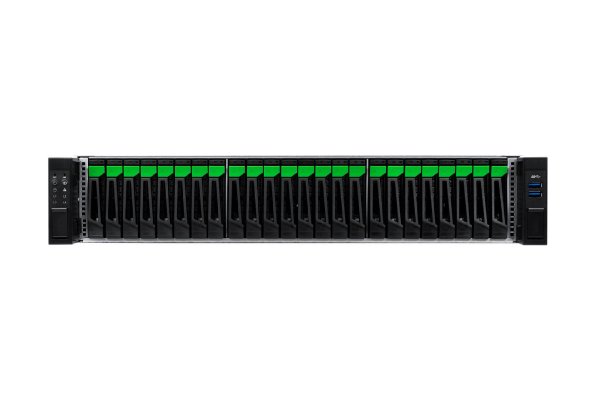

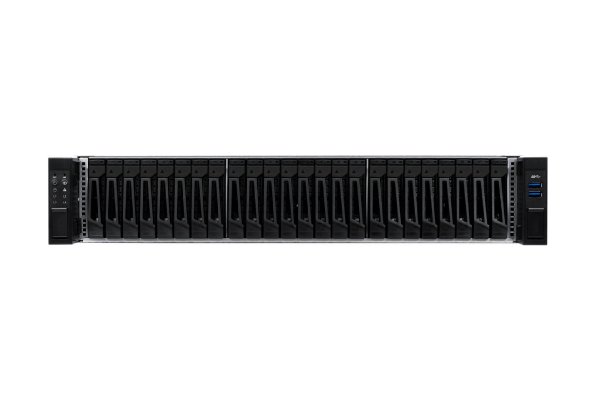

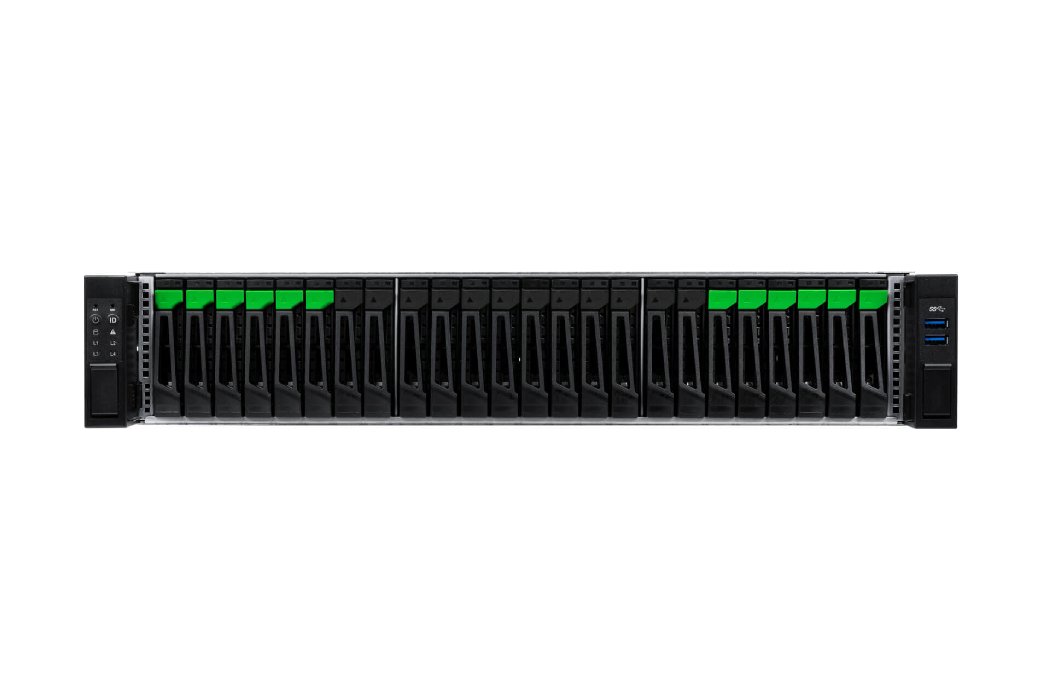

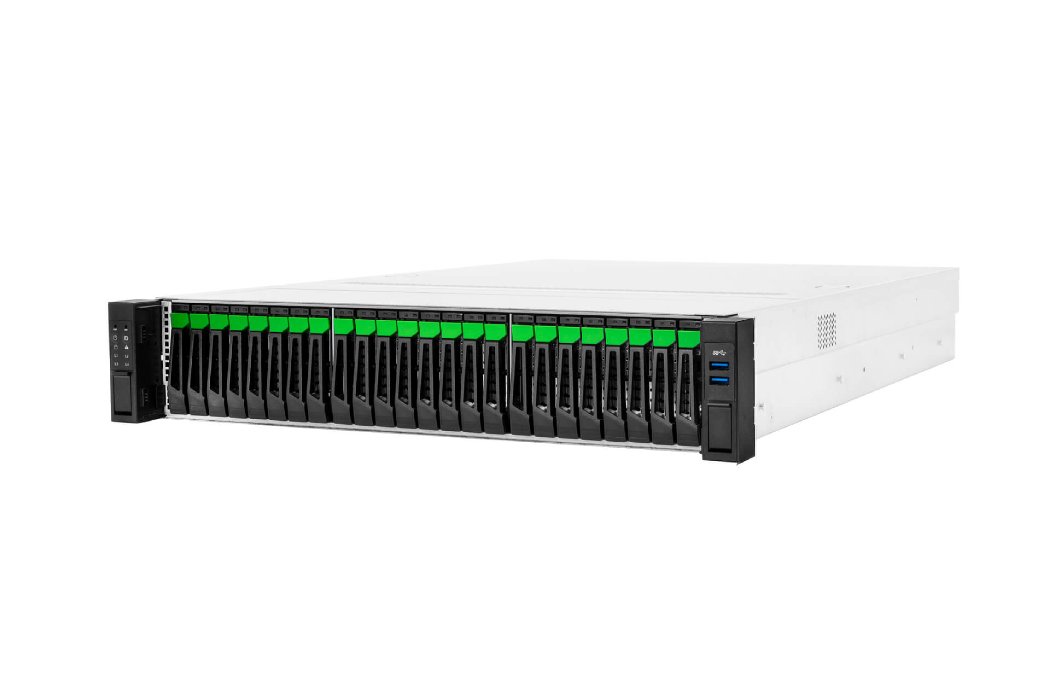

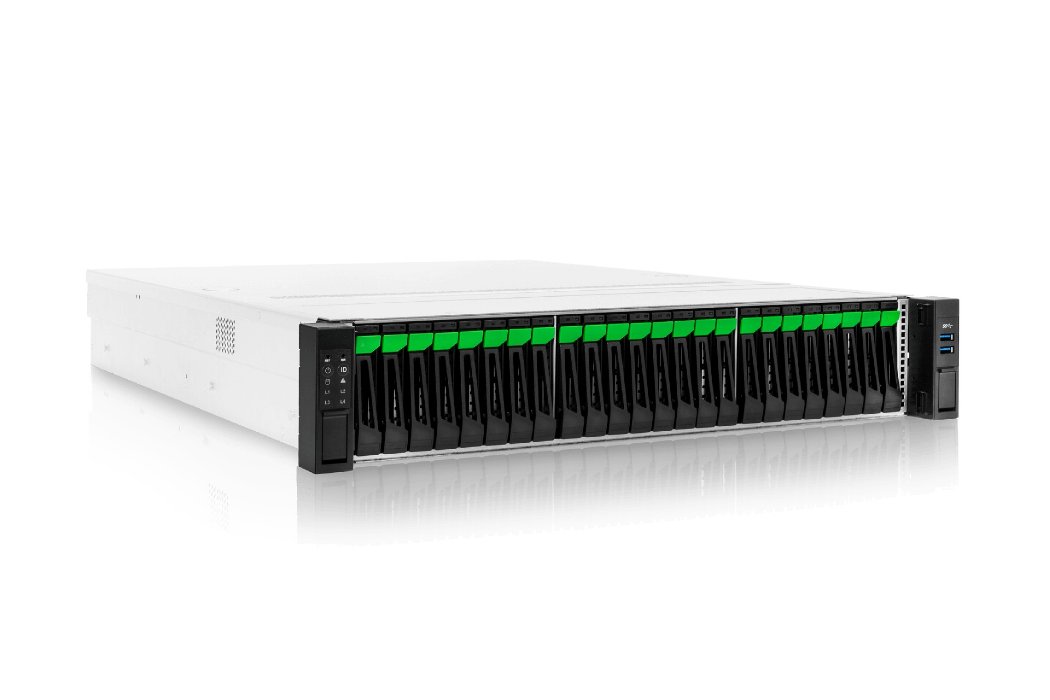

IW-RS224-09

2U PCIe Gen5 NVMe Hybrid Rackmount Chassis

---

• 2U PCIe Gen5 and SAS4 hybrid solution storage server

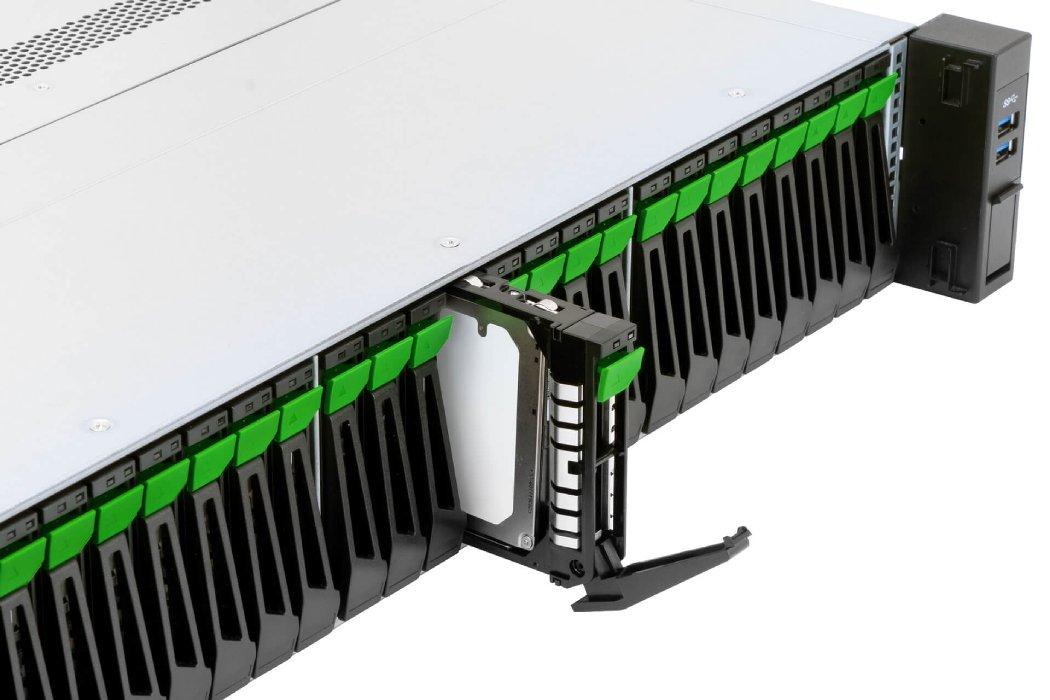

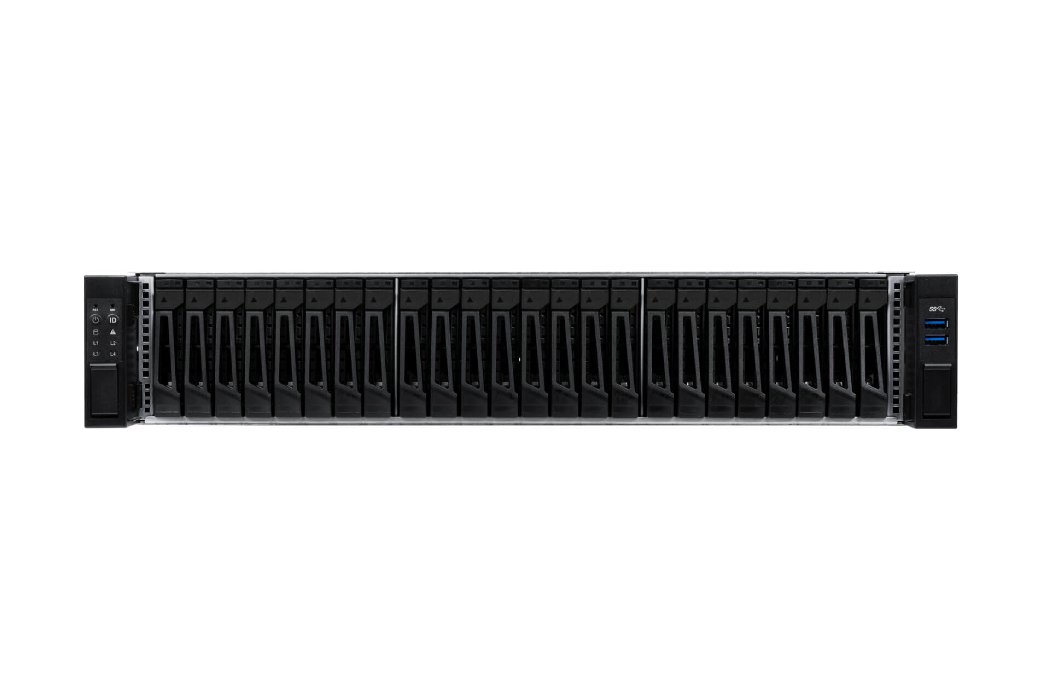

• All 24 for the 2.5" hot-swap SSD trays fully support U.2 NVMe, SAS, and SATA SSDs
• Hybrid backplane options for PCIe Gen5 and SAS4, featuring MCIO and SlimSAS connectors
• Tray front panel features a large cooling area with 17,000RPM fans to meets the PCIe Gen5 and SAS4 thermal needs

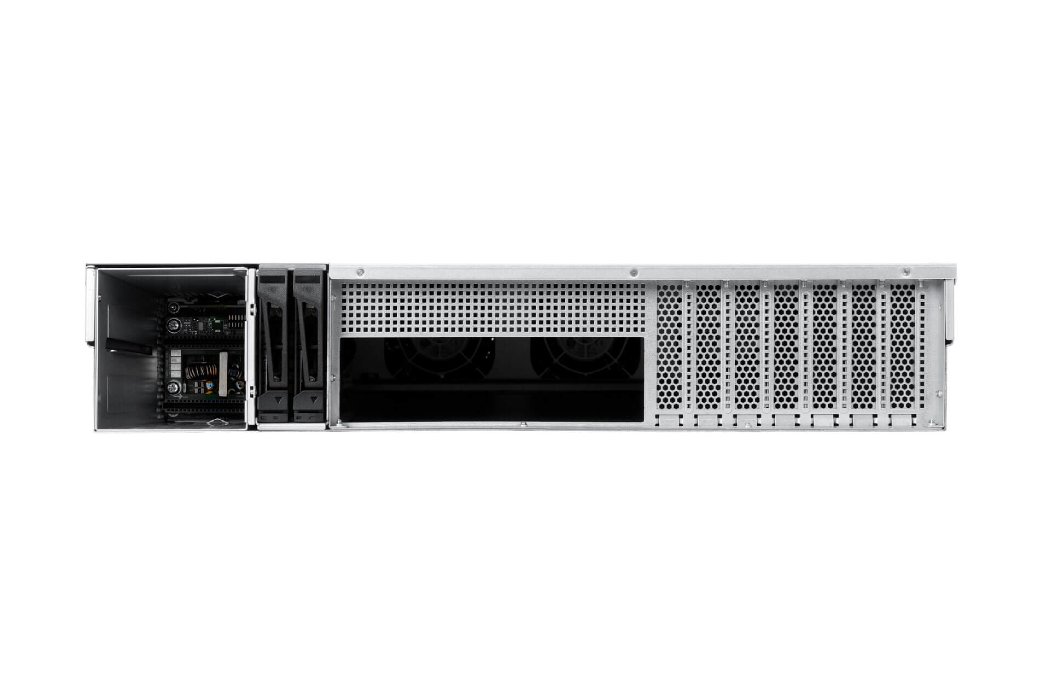

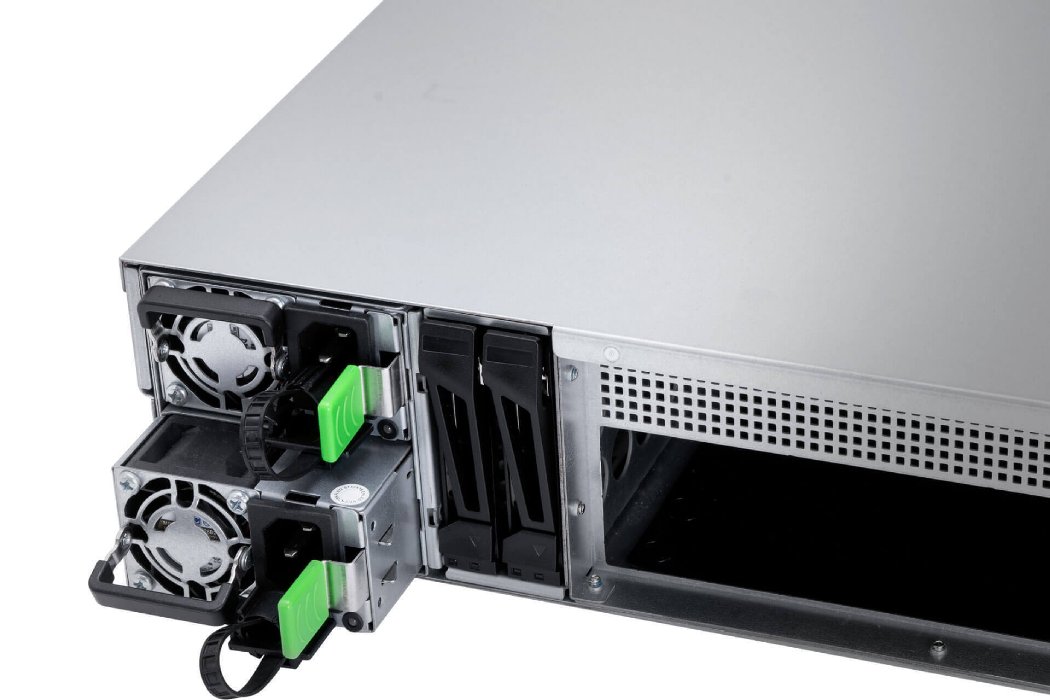

• Two 2.5" SAS/SATA SSDs for system disks located at the rear of the chassis

Specification
Industry Standard	Compatible with EIA-RS310D standard 19" cabinets

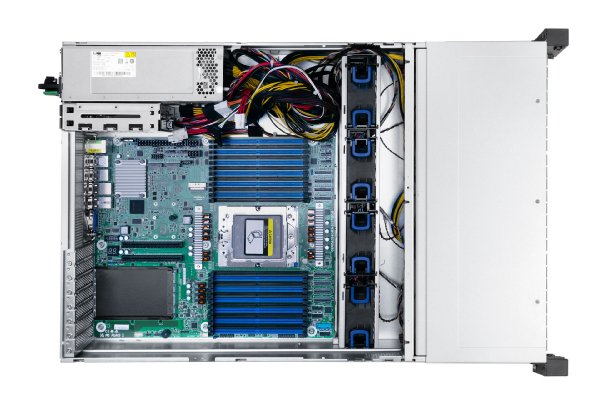

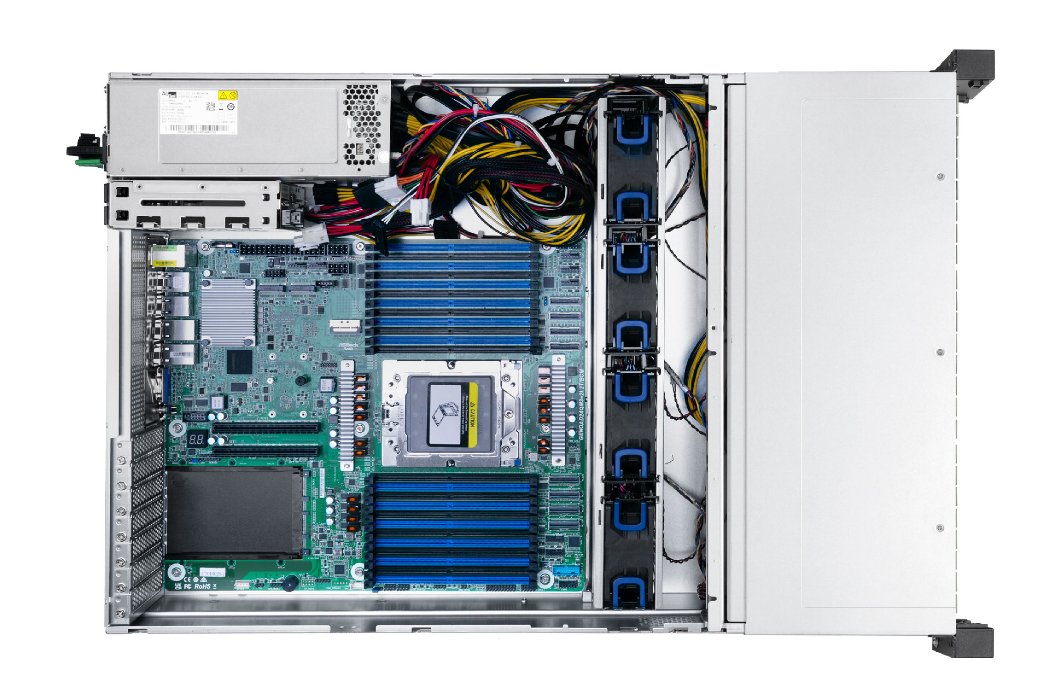

M/B Form Factor	ATX (12" x 9.6"), CEB (12" x 10.5"), EEB(12" x 13")
Drive Bay	External 2.5" hot-swap trays x 24 (supports U.2 NVNe/SAS/SATA drives) Rear 2.5" hot-swap trays x 2 (supports SAS/SATA drives)
Power Supply	Supports: Form factor: 80 Plus Platinum CRPS 2000W CRPS PDB pre-installed
Indicators	Power LED, LAN1/LAN2/LAN3/LAN4 LED, system LED, ID LED, HDD LED

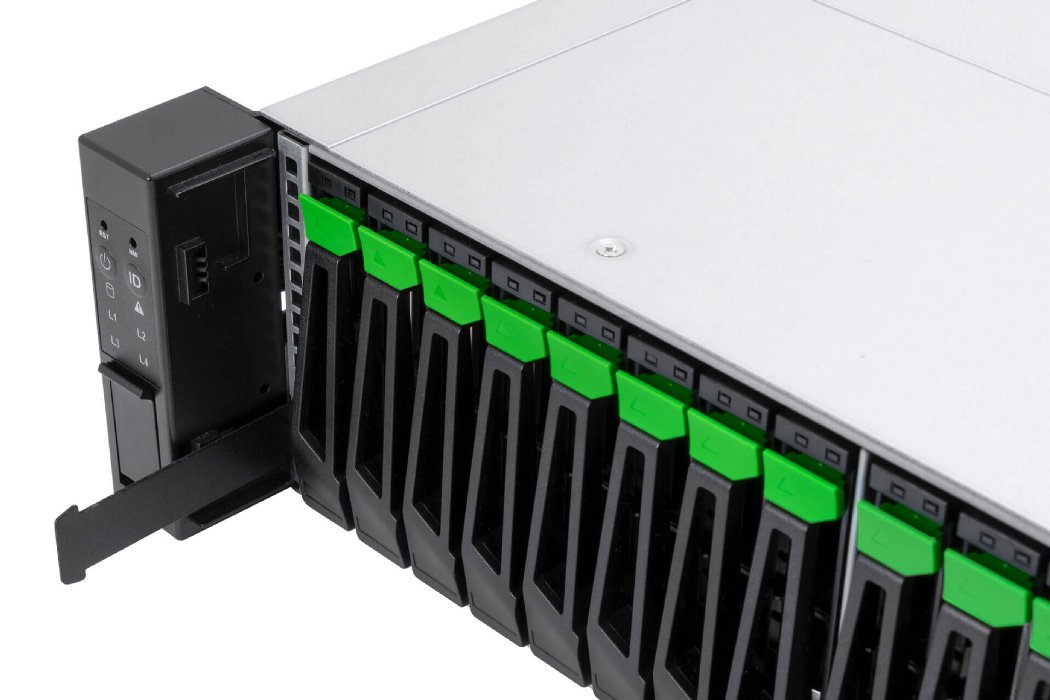

Front Control Panel	Power on/off, system reset, NMI, ID SW, USB 3.0 x 2

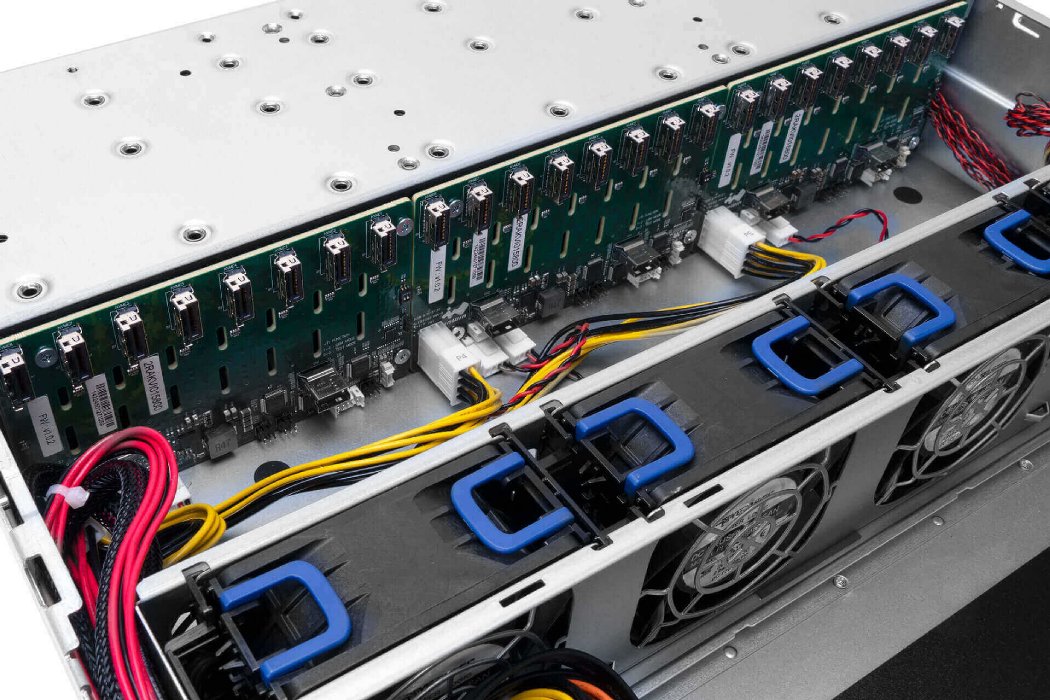

Backplane Type-1	Host: MCIO 4i x 8, SlimSAS (SFF-8654 4i) x 2 for SAS/SATA transfer rates SSD: NVMe/SAS/SATA SSD x 8 Backplane pre-installed x 3pcs with 8-drive capacity of each
Backplane Type-2	Backplane Host: MCIO 4i x 12 Expander Host: SlimSAS (SFF-8654 4i) x 4 for SAS/SATA transfer rates SSD: SAS/SATA x 24 or NVMe x 12 and SAS/SATA SSD x 12 Ethernet lan port x 1

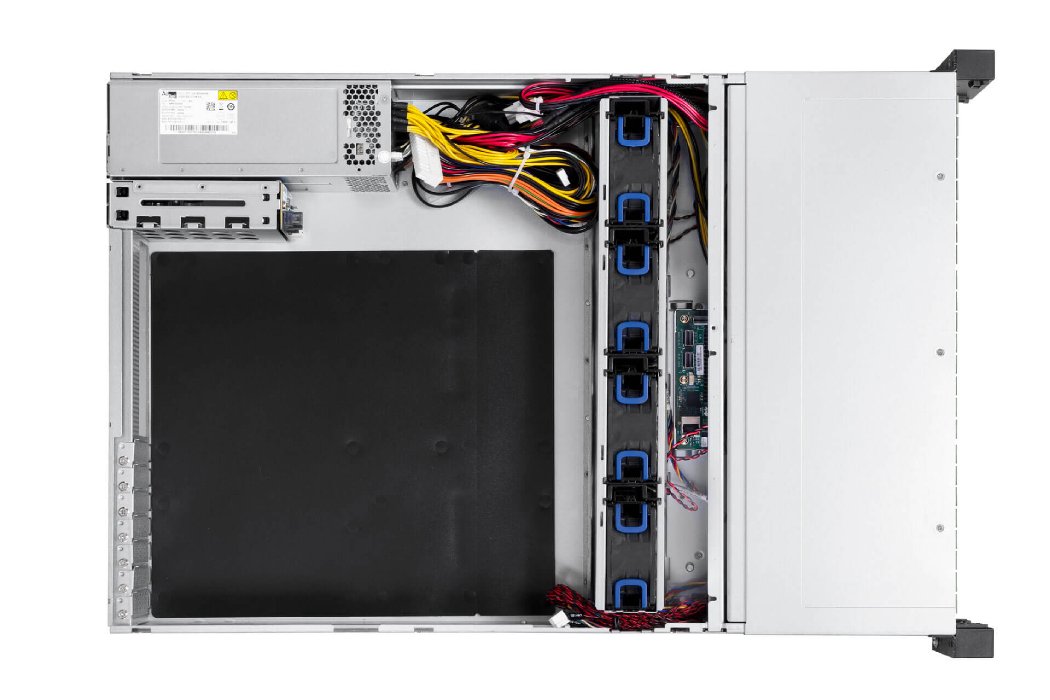

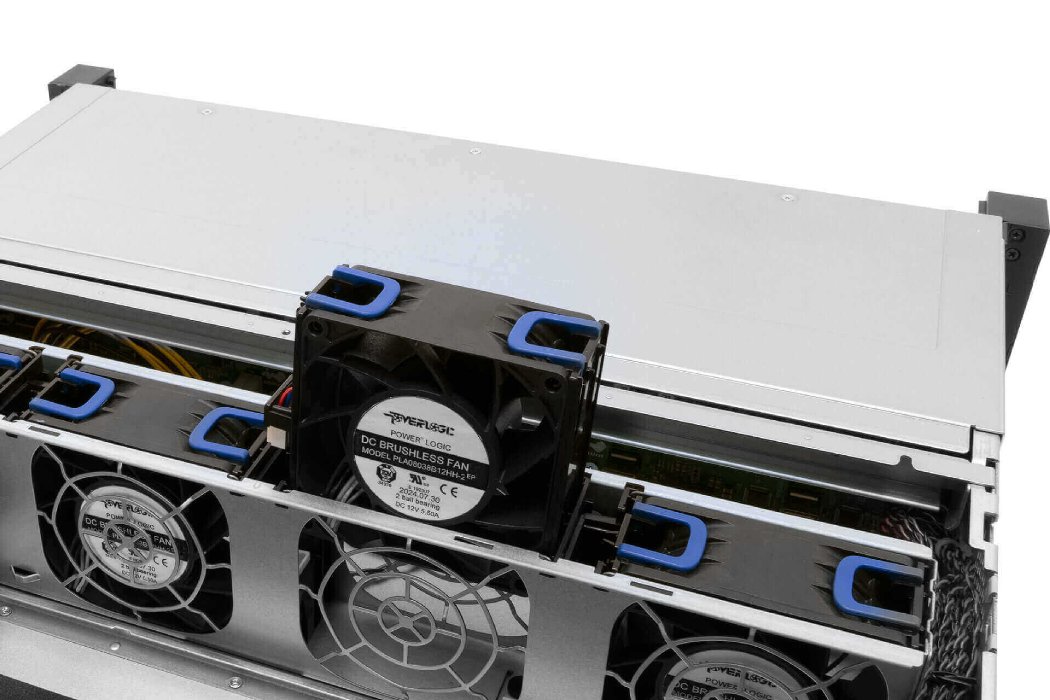

Cooling Fans	Pre-installed 80 x 38mm PWM hot-swap fans x 4, 17000RPM
Expansion Slot	Low-profile PCIe slots x 7
Material	Material: SGCC Thickness: 1.2mm
Rail Kit	Supports 28" tool-less & ball-bearing slide rails
Product Dimensions (DxWxH; Chassis Only)	663.6 x 448 x 87.5mm (26.1" x 17.6" x3.4")
Package Dimensions (DxWxH)	845 x 595 x 223mm (33.3" x 23.4" x 8.8")
Weight	Net weight: 13.23kg Gross weight: 16.6kg
Cubic Feet	3.96

Backplane Specifications

Backplane Type-1	SAS4 & PCIe Gen5 2U 8-bays hybrid backplane (Pre-installed x 3pcs with 8-drive capacity of each)
Data Transfer Rate	SAS4 24Gb/s PCIe Gen5 32GT/s
Dimensions (W x H)	138mm x 81mm
Backplane Type	Passive
Host Interface	MCIO 4i x 8, SlimSAS (SFF-8654 4i) x 2 for SAS/SATA transfer rates
SSD Interface	NVMe/SAS/SATA SSD x 8

Backplane Type-2	SAS4 & PCIe Gen5 hybrid backplane and expander
Data Transfer Rate	SAS4 24Gb/s PCIe Gen5 32GT/s
Dimensions (W x H)	420mm x 81mm
Backplane Type	Active with expander board
Host Interface	Backplane: MCIO 4i x 12 Expander: SlimSAS (SFF-8654 4i) x 4 for SAS/SATA transfer rates Ethernet lan port x 1
SSD Interface	SAS/SATA x 24 or NVMe x 12 and SAS/SATA SSD x 12

Rear Disk Backplane Specifications

Backplane	SAS3 backplane
Data Transfer Rate	12Gb/s
Dimension (W x H)	80mm x 37mm
Backplane Type	Passive
Host Interface	Mini-SAS HD (SFF-8643) x 1
HDD Interface	SAS/SATA x 2

* InWin NVMe backplane supports PCIe Gen5 & SAS4, the actual data transfer speed will be determined by MB and HDD specifications.
* All components and optional parts are not included. InWin reserves the right to make final modifications.
