SKU: ACIWSK23-07
Brand: In-Win

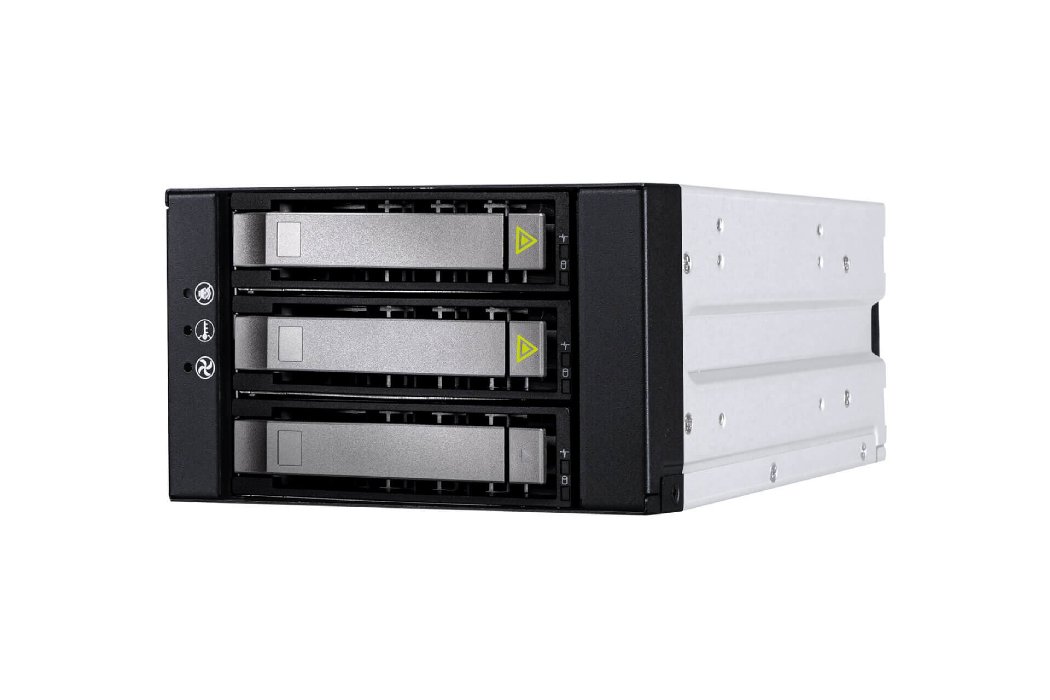

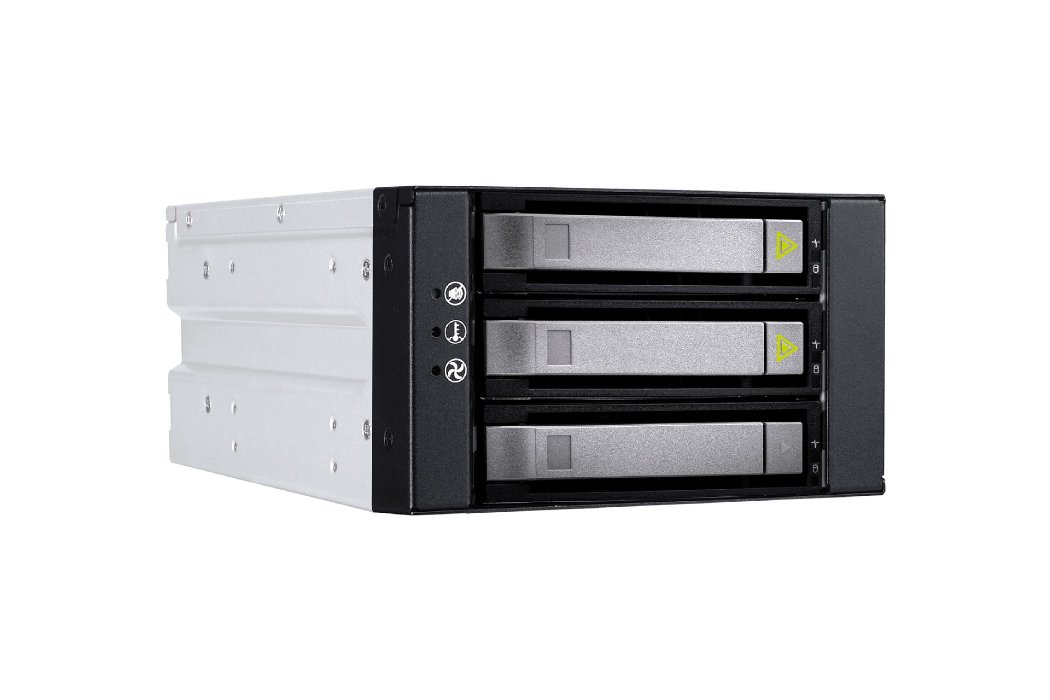

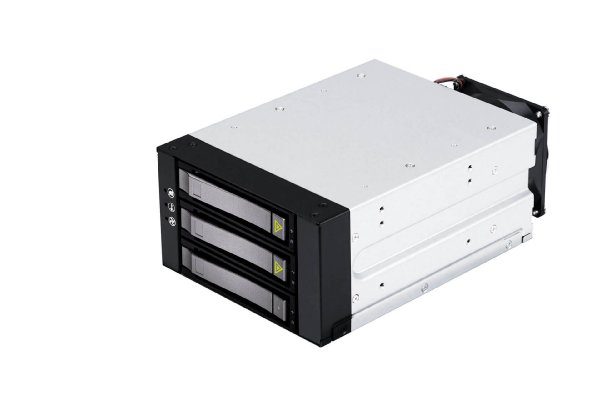

In Win SK23-07 6G Backplane 3.5" Hot-Swap HDD x 3 convert to 5.25" Drive bay x 2
MPN: SK23-07
Price: $135.00
Product Details
2-in-3 PCIe Gen4 NVMe/SAS3 Storage Kit

  • Designed for standard 5.25" bays, accommodates three 2.5"/3.5" hot-swap trays in three drive bays
  • Supports U.2 NVMe, SAS, and SATA HDDs
  • Hybrid backplane for PCIe Gen4 and SAS3, featuring OCuLink and SATA interface
  • Detachable 80mm PWM rear cooling fan for easy replacement and maintenance
  • The front indicators alert for fan failure or unusual temperature spikes
Specification
Drive Bay External 2.5"/3.5" hot-swap trays x 3 (supports U.2 NVNe/SAS/SATA drives)
Indicators Fan failure, temperature spikes
Front Control Panel Alarm mute
Backplane • Host: OCuLink (SFF-8611) x 2, SATA x 3,
• HDD: NVMe x 2 and SAS/SATA x 1, or SAS/SATA x 3
Data Transfer Rate SAS3 12Gb/s
Cooling Fans 80 x 25mm PWM rear fan x 1, 4500RPM
Temperature 0°C (32°F) ~ 50°C (122°F)
Humidity 5% ~ 95% non-condensing
Product Dimensions (DxWxH) 225.3 x 146 x 84.8mm
(8.9" x 5.7" x 3.3")
Package Dimensions (DxWxH) 151 x 294 x 224mm
Weight • Net weight: 1.85kg
• Gross weight: 2.09kg


Backplane Specifications

Backplane SAS3 & PCIe Gen4 hybrid backplane
Dimension (W x H) 112.9 x 82.5mm
Backplane Type Passive
Host Interface OCuLink (SFF-8611) x 2, SATA x 3
HDD Interface NVMe x 2 and SAS/SATA x 1, or SAS/SATA x 3
