Jetway JBC150F594-Q170-B Intel Core Q170 Mini 1U Rackmount w/Dual Intel LAN Port

- 6th / 7th Gen Intel® Core i7 / i5 / i3 / Pentium Processor
- Embedded Long-life Series, Planned Lifecycle Through Q3’2030
- Supports DDR4-2133 SODIMM up to 32GB Total
- 2 * Intel Gigabit LAN with iAMT 11.0 & vPRO Support
- Rackmount for High Performance Digital Security
- ECO-design for EuP/ErP

Specification

Model Name	JBC150F594-Q170-B
Part Number	HBJC150F594-Q170-B
Motherboard Specification
CPU	6th / 7th Gen Intel® Core i7 / i5 / i3 / Pentium Processor Socket LGA 1151 (Formerly Skylake and Kaby Lake)
Chipset	Intel Q170
Memory	2 x 260-pin SODIMM un-buffered Dual Channel DDR4-2133 up to 32GB Total
Graphics	Intel HD Graphics
LAN	1 x Intel I211-AT PCI-E Gigabit LAN 1 x Intel I219-LM PHY Gigabit LAN (iAMT 11.0)
Audio	Realtek ALC662VD HD Audio
Storage	2 x SATA3 6Gb/s with RAID 0, 1
Wireless / Mini-PCIE Slot	1 x open mSATA/Mini-PCIE Slot (Full Size) 1 x open Mini-PCIE Slot (Half Size)
USB	Embedded 6 * USB 3.0 and 2 * USB 2.0
Chassis Specification
Product size	430 (W) * 252 (D) * 44 (H) mm
Color	Black
Storage Bay	1 x 3.5" OR 2 x 2.5" SATA3 6Gb/s bays supporting RAID 0, 1
Expansion Slot	1 x PCI-E 3.0 x16 Riser Card (Half size Single slot PCI-E x16 card)

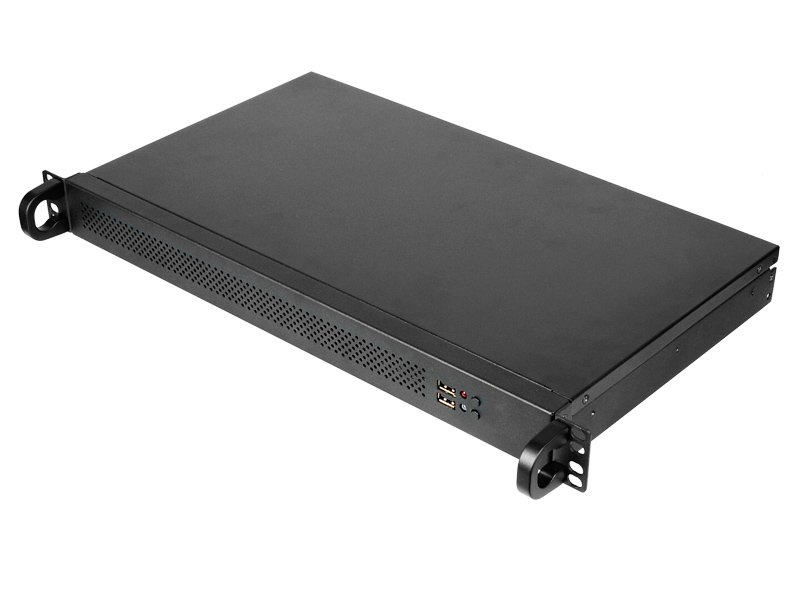

Front I/O Port	1 * Power Button 1 * Reset Button 1 * Power LED 1 * HDD LED 2 * USB 2.0 ports

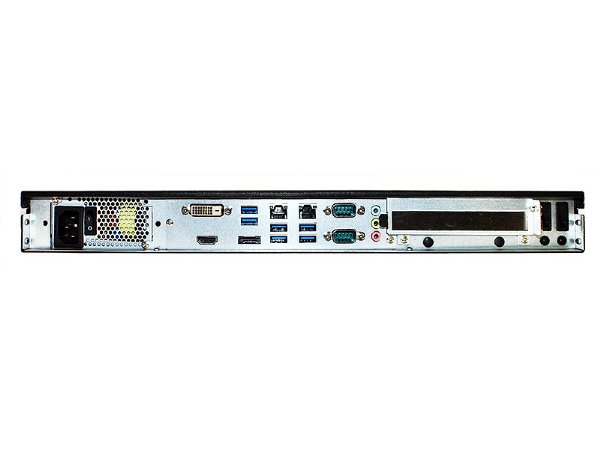

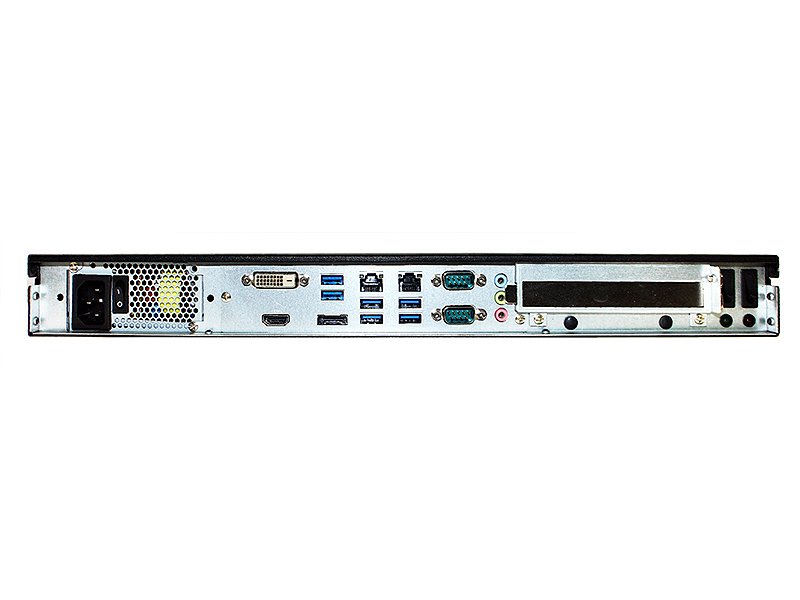

Rear I/O Port	1 x AC ON/OFF Switch 1 x AC-in Plug 1 x DVI-D (1920 * 1080) 1 x HDMI 2.0 (4096 * 2160 @ 60Hz) 1 x DP 1.2 (4096 * 2304 @ 60Hz ) 6 x USB 3.0 2 x Intel Gigabit LAN 2 x Serial Port (1 * RS232, 1 * RS232/422/485) 3 x 3.5mm Audio Jack 1 * Power Switch 1 * Reset Switch 1 * Power LED 1 * HDD LED
1U Power Supply	1U-200W / Support PFC / 150(L) * 81.5(W) * 40.5(H) mm (FLEX)
Cooling Fans	4020 FAN x 3 / 7000 rpm / DC-12V-0.1A / 8 CFM
Environment	Operating Temperature : 0 ~ 60°C Storage Temperature : -10 ~ 70°C
Functional	High Performance Digital Security, Surveillance, Digital Signage, Game Server
Certificate	CE,FCC,ErP For Rackmount Barebone
