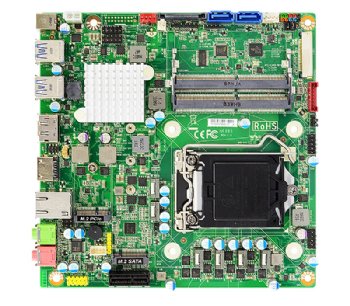

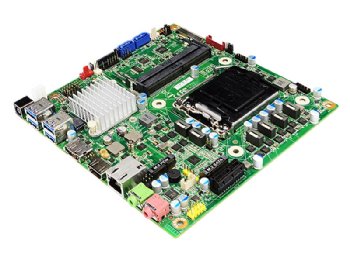

Jetway JNF893-H310 8th/9th Generation LGA1151 Mini-ITX Motherboard

- Long-Life Embedded Class with Planned Lifecycle Through Q2'2033
- Ultra Slim Design with 20mm z-height and Onboard +19V DC Power
- Supports DDR4-2666 SODIMM up to 32GB Total
- Supports 2 Displays: DP, HDMI, LVDS
- ECO-design for EuP/ErP

Specification

Model Name	NF893
Part Number	JNF893-H310
Form Factor	Mini-ITX (170 x 170mm)
Processor	8th & 9th Gen Intel® Core i7 / i5 / i3 / Pentium Processor up to 65W Socket LGA 1151 (Formerly Coffee Lake)
Chipset	Intel H310
Memory	2 x 260-pin SODIMM un-buffered Dual Channel DDR4-2666 up to 32GB Total * Core i3, Pentium, and Celeron can only support DDR4-2400
Graphics	Requires Intel Core processor with Intel HD Graphics
Audio	Realtek ALC662VD HD Audio
LAN	1 x Intel I219-V PHY Gigabit LAN
Storage	2 x SATA3 6Gb/s 1 x M.2 Slot (M-key, SATA, 2242/2260/2280)
Super IO	FINTEK F81804U
TPM	Intel fTPM 2.0 (PTT) Trusted Computing Firmware Option: Onboard TPM v1.2 or v2.0
Back Panel Connectors

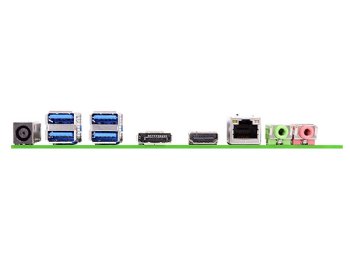

1 19V DC-in Jack (1-pin 5.1mm ID, 7.4mm OD) 4 USB 3.1 Gen 1 (5 Gb/s) 1 DP 1.2 (4096 * 2304 @ 60Hz ) 1 HDMI 1.4 (4096 * 2160 @ 30Hz) 1 RJ45 LAN (10/100/1000) 2 3.5mm Audio Jack
Onboard I/O Connectors
1 PCI-E x1 Slot 1 M.2 Slot (M-key, SATA, 2242/2260/2280) 1 M.2 Slot (E-key, 2230, for WiFi) 2 SATA3 6Gb/s Connectors 2 USB Pin Header for up to 4 additional USB 2.0 Ports 1 Serial Headers (RS232) 1 24-bits Dual Channel LVDS Connector/Inverter 1 Chassis Intrusion Jumper 1 AT/ATX Mode Jumper 1 8-bit GPIO Header 1 6-pin PS2 Keyboard Mouse Header 1 9-pin Audio Header 1 4-pin Digital Microphone Header 1 9-pin Front Panel Header 2 4-pin Fan Headers 1 2-pin +19V Alternate Power-in (Molex 5566-2) 1 15-pin SATA Power-out Connector
Power Supply for NF695
External Power Supply â€" the board can be powered with a +19V external power supply though a DC connector on the back panel. The rear +19V DC jack accepts plugs with an inner diameter (ID) of 5.1 mm and an outer diameter (OD) of 7.4 mm, where the inner contact is +19V and the shell is GND. Internal Power Supply â€" the board can alternatively be powered via the internal +19V 2-pin power connector, where pin 1 is +19V and pin 2 is GND. The internal 2-pin power connector accepts a Molex 5557-02R plug from the power supply. Caution: There is no isolation circuitry between the external +19V DC jack and the internal 2-pin power connector. It is the system integrator's responsibility to ensure no more than one power supply unit is or can be attached to the board at any time and to ensure the external +19V DC jack is covered if the internal 2-pin power connector is to be used.
Market Segments Supported
√ Digital Security & Surveillance √ Digital Signage √ Gaming √ Industrial Automation/Control √ Medical √ Retail (POS/Kiosk/ATM)
Environment
Operating Temperature : 0 ~ 60°C Storage Temperature : -20 ~ 85°C
