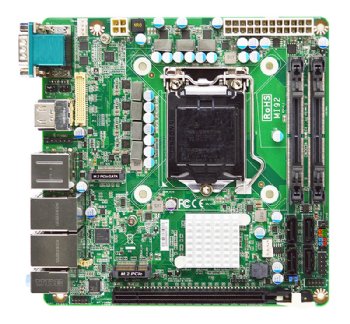

Jetway MI92-10 10th Generation LGA1200 Q470E Mini-ITX Motherboard

- 10th Gen Intel® Core i7 / i5 / i3 / Pentium Processor
- Long-Life Embedded Class with Planned Lifecycle Through Q2'2035
- 2 * DDR4-2933MHz Dual Channel SO-DIMM up to 64GB
- PCI-E x16 Gen 3, 4 * USB 3.2 (Gen 2), 2 * USB 3.2 (Gen 1)
- Dual Gigabit LAN, 1 * M.2 M-key, 1 * M.2 E-key, 2 * COMs
- Supports up to 3 Displays, 2 HDMI, DP, eDP
- ECO-design for EuP/ErP

Specification

Model Name	MI92
Part Number	MI92-10	MI92-12
Form Factor	Mini ITX (170 x 170mm)
Processor	10th Gen Intel® Core i7 / i5 / i3 / Pentium Processor up to 65W Socket LGA 1200 (Formerly Comet Lake)
Chipset	Intel Q470E
Memory	2 x 260-pin SODIMM Dual Channel DDR4-2933 up to 64GB Total * Core i9 / i7 CPUs support DDR4 up to 2933 MHz * Core i5 / i3 CPUs support DDR4 up to 2666 MHz * Pentium / Celeron CPUs support DDR4 up to 2400 MHz
Graphics	Requires Intel Core processor with Intel HD Graphics
Audio	Realtek ALC662 HD Audio Codec
LAN	1 x Intel I219-LM PHY Gigabit LAN (iAMT 12.0) 1 x Intel I211-AT PCI-E Gigabit LAN
Storage	4 x SATA3 6Gb/s for RAID 0/1/5/10 1 x M.2 (PCIe 3.0 x4 & SATA, M-key, 2280 NVMe)
Super IO	FINTEK F81966D
TPM	Intel fTPM 2.0 (PTT) Trusted Computing Firmware	Intel fTPM 2.0 (PTT) Trusted Computing Firmware Onboard NUVOTON TPM v2.0

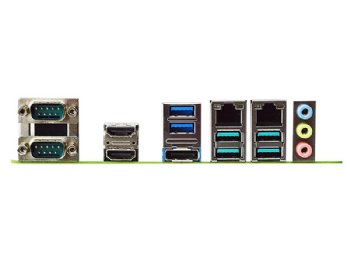

Back Panel Connectors
2 Serial Ports (2 * RS232/422/485) 2 HDMI 1.4 (4096 * 2160 @ 30Hz) 1 DP 1.2 (4096 * 2304 @ 60Hz) 2 USB 3.2 Gen 1 (5 Gb/s) 2 RJ45 LAN (10/100/1000) 4 USB 3.2 Gen 2 (10 Gb/s) 3 3.5mm Audio Jack
Onboard I/O Connectors
1 PCI-E x16 Slot (Gen 3, x8/x8 Bifurcation) 4 SATA3 6Gb/s Connector for RAID 0/1/5/10 1 M.2 M-Key, 2280 (PCIe x4 NVMe and SATA) 1 M.2 E-key, 2230 (USB and PCIe CNVi WiFi) 1 USB Pin Headers for 2 additional USB 2.0 Ports 1 40-pin eDP (4096 * 2304 @ 60Hz) 1 8 bit GPIO Header 1 AT/ATX Mode Jumper 1 9-pin Front Audio Header 1 5-pin SMBUS Header 1 4-pin Fan Header 1 24-pin ATX Power Connector 1 4-pin 12V ATX Power Connector
Market Segments Supported
√ Industrial PC √ Factory Automation √ Retail (POS/Kiosk/ATM) √ Panel PC √ IoT
Environment
Operating Temperature : 0 ~ 60°C Storage Temperature : -20 ~ 85°C Humidity: 10% ~ 90% RH @40°C (non-condensing)
