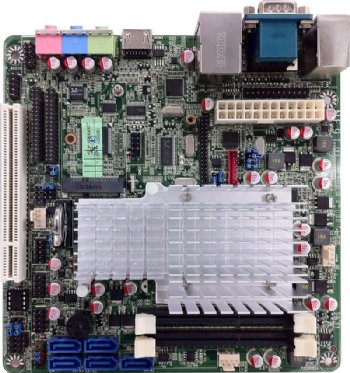

Jetway NF9I-2550 Cedar Trail, Intel Atom D2550 + ICH10R, FANLESS with optional 40mm fan

Jetway NF9I-2550 Cedar Trail, Intel Atom D2550 + ICH10R, FANLESS with optional 40mm fan

• 3rd Generation Intel® Atom Dual Core D2550
• Embedded Long-life Series, 5 Year Availability
• Supports Jetway Daughter Boards Gen2
• Supports up to 5 SATA2 HDDs
• 24-bit Dual Channel LVDS
• ECO-design for EuP/ErP

Specification

Jetway NF9I Mini-ITX Motherboard
Processor	3rd Generation Intel® Atom Dual Core D2550 (1.86GHz@10W)
Chipset	Intel ICH10R
Memory	2 x 204-pin DDR3-1066 SODIMM slot Single Channel (up to 4 GB)
Graphics	PowerVR SGX 545 (GMA 3650@640MHz) Integrated Graphics for D2550
Audio	Realtek ALC662 5.1 Channel Audio
LAN	1 x Intel 82574L PCI-E Gigabit LAN
Storage	5 x SATA2 3Gb/s Ports with RAID 0, 1, 5, 10 1 x mSATA (mSATA/mini-PCIE shared slot)
Super IO	FINTEK F71869A
Back Panel Connectors
1 PS/2 Keyboard/Mouse Combo Port 1 RS232/422/485 Serial port 1 VGA (up to 2048 x 1536) 1 HDMI (up to 1920 x 1200) 4 USB 2.0 1 RJ45 LAN (10/100/1000) 3 3.5mm Audio
Onboard I/O Connectors
1 PCI Slot 1 PCI Express Mini Card Slot (full-size, mSATA/mini-PCIE shared) 5 SATA2 3Gb/s Connectors 3 USB Pin Headers for up to 6 additional USB 2.0 Ports 1 RS232 Serial Header 1 24-bit Dual Channel LVDS connector/Inverter (CHRONTEL CH7511B) 1 Jetway Daughter Board Gen2 Connector 1 Chassis Intrusion Header 1 9-pin Audio header 1 GPIO header 1 CIR header 1 Parallel header 1 Front Panel header 3 Fan headers 1 24-pin ATX Power Connector
Market Segments Supported
√ Digital Security & Surveillance √ Digital Signage √ Gaming √ Industrial Automation/Control √ Medical √ Retail (POS/Kiosk/ATM) √ Networking/Storage Server/Mail Server/Print Server √ Thin Client √ HTPC
