    Jetway NP93-2930 Pico-ITX Form Factor Intel Celeron N2930 SoC Bay Trail with 2GB memory: JNP93-2930

    Our Products: Motherboards > PICO-ITX Motherboard
    Jetway NP93-2930 Pico-ITX Form Factor Intel Celeron N2930 SoC Bay Trail with 2GB memory: JNP93-2930
    Jetway NP93-2930 Pico-ITX Form Factor Intel Celeron N2930 SoC Bay Trail with 2GB memory: JNP93-2930
    Jetway NP93-2930 Pico-ITX Form Factor Intel Celeron N2930 SoC Bay Trail with 2GB memory: JNP93-2930
    Jetway NP93-2930 Pico-ITX Form Factor Intel Celeron N2930 SoC Bay Trail with 2GB memory: JNP93-2930
    Jetway NP93-2930 Pico-ITX Form Factor Intel Celeron N2930 SoC Bay Trail with 2GB memory: JNP93-2930
    Jetway NP93-2930 Pico-ITX Form Factor Intel Celeron N2930 SoC Bay Trail with 2GB memory: JNP93-2930
    Jetway NP93-2930 Pico-ITX Form Factor Intel Celeron N2930 SoC Bay Trail with 2GB memory: JNP93-2930
    Jetway NP93-2930 Pico-ITX Form Factor Intel Celeron N2930 SoC Bay Trail with 2GB memory: JNP93-2930
    (Click to see larger image and other views)
    SKU: MBJEJNP93-2930
    Brand: Jetway
    Jetway NP93-2930 Pico-ITX Form Factor Intel Celeron N2930 SoC Bay Trail with 2GB memory: JNP93-2930 1 LAN, 2 Display, 1 x HDMI, LVDS, 1 x SATA2 port, full-size mSATA, half-size mini-PCIE, 2 Internal COM headers, 1 x USB2, 1 x USB3, Headers for 6 x USB 2.0, HDMI Audio, 3W Stereo Amplifier, 12V DC-in
    MPN: JNP93-2930
    Price: $259.60
    Availability: Typically ships within 120 days
    Product Details

    - INTEL® Bay Trail-M N2930 / N2807 SoC Processor
    - Embedded Long-life Series, Planned Lifecycle Through Q1'2029
    - Pico-ITX Form Factor (100mm X 72mm) Design for Fanless Systems
    - 12V DC jack on back panel for external power supply
    - Built-in DDR3L-1333-2GB RAM
    - ECO-design for EuP/ErP




    Specification
    Model NameNP93
    Part NumberJNP93-2930
    JNP93-2807
    Form Factor2.5" Pico-ITX (100 x 72mm)
    ProcessorFanless INTEL® Bay Trail-M Celeron N2930 SoC Processor 1.83GHz, Quad-Core, 7.5W
    Fanless INTEL® Bay Trail-M Celeron N2807 SoC Processor 1.58GHz, Dual-Core, 4.3W
    * Low-profile Heatsink Installed for Basic Bench Testing
    MemoryOnboard 2GB DDR3L-1333, non-expandable
    GraphicsIntel® HD Graphics
    AudioRealtek ALC662 HD Audio
    Realtek ALC888 HD Audio (Manufacturered after March 2021)
    LAN1 x Realtek RTL8111G Gigabit Ethernet
    1 x Realtek RTL8111H Gigabit Ethernet (Manufacturered after March 2021)
    Storage1 x full size mSATA Slot
    1 x SATA2 3Gb/s Connector
    Super IOFINTEK F81803U
    Form FactorPico-ITX Form Factor (100mm X 72mm)

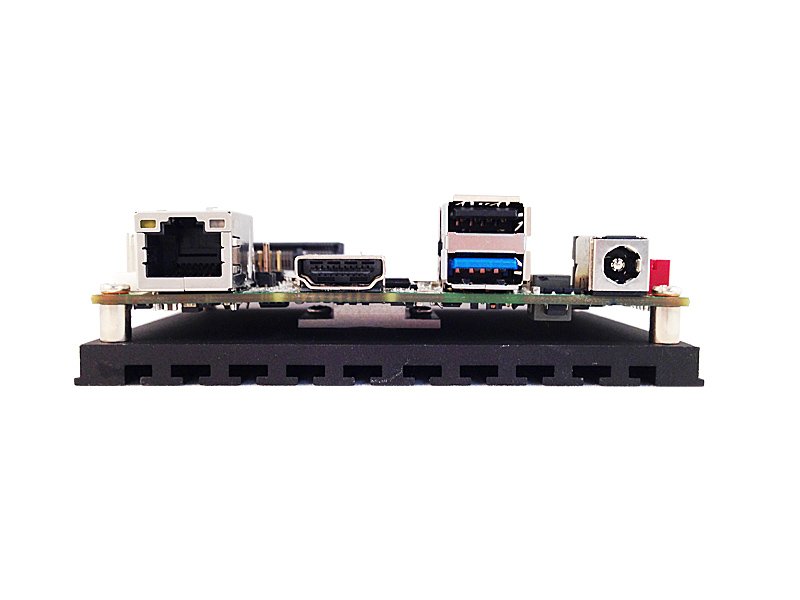

    Back Panel Connectors
    1 RJ-45 ports (10/100/1000)
    1 HDMI
    1 USB 3.0 port
    1 USB 2.0 port
    1 12V DC-in jack

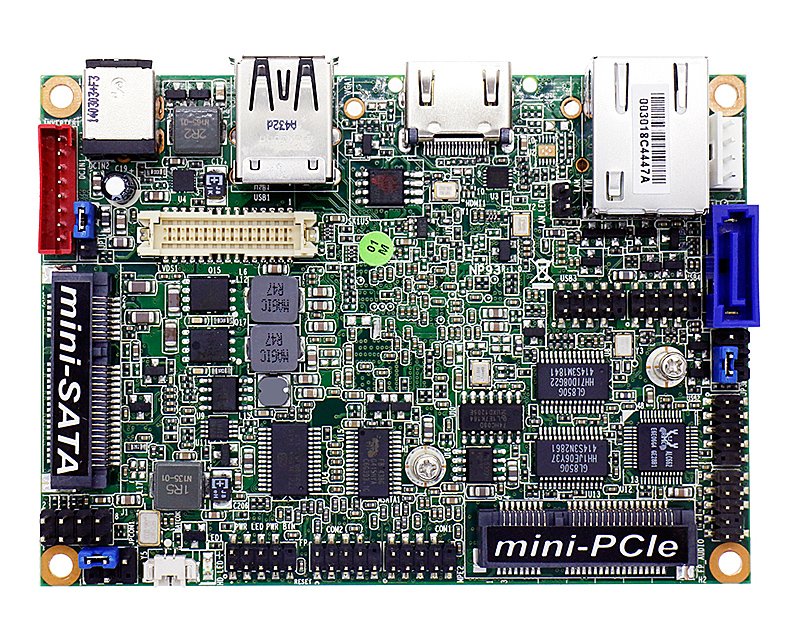

    Onboard I/O Connectors
    1 Full size mSATA Slot
    1 Half size mini PCI-E Slot
    1 SATA2 3Gb/s Connector
    3 USB Pin Headers (2.0 mm pitch) for up to 6 additional USB 2.0 Ports
    2 Serial Port Headers (2.0 mm pitch) (1 * RS232, 1 * RS232/422/485)
    1 AT/ATX Mode Select Jumper
    1 24-bit Dual Channel LVDS/Inverter (CHRONTEL CH7511B chipset up to 1920 x 1200)
    1 9-pin Front Audio Header
    1 9-pin Front Panel Connector
    1 2-pin LAN LED Header
    1 4-pin LVDS 5V/3.3V/12V Select Jumper
    1 3-pin Inverter 5V/12V Select Jumper
    1 4-pin Power-out Connector (Male) for 2.5" HDD
    Power Supply for NP93
    External Power Supply – the board can be powered with a +12V external power supply though a DC connector on the back panel. The rear +12V DC jack accepts plugs with an inner diameter (ID) of 2.5 mm and an outer diameter (OD) of 5.5 mm, where the inner contact is 12V and the shell is GND.
    Market Segments Supported
    √ Digital Security & Surveillance
    √ Digital Signage
    √ Gaming
    √ Industrial Automation/Control
    √ Medical
    √ Retail (POS/Kiosk/ATM)
    √ Networking/Storage Server/Mail Server/Print Server
    √ Thin Client
    √ HTPC
    Environment
    Operating Temperature : 0 ~ 40°C
    Storage Temperature : -20 ~ 85°C
