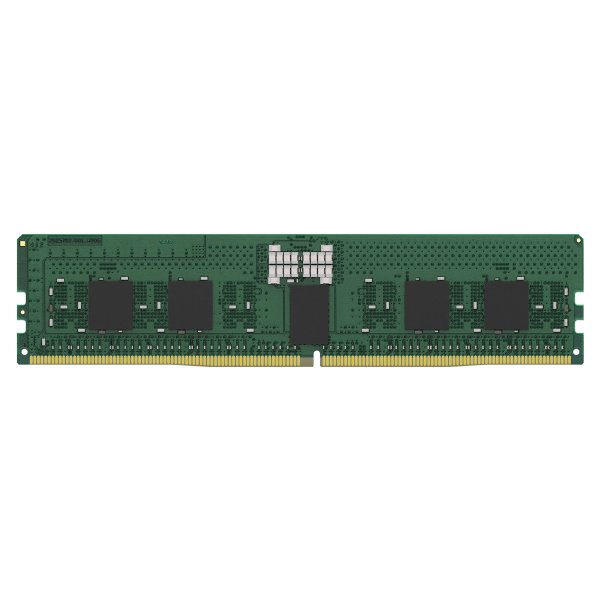

Kinston Server Premier 16GB DDR5 5600MT/s ECC Registered DIMM CL46 x80 1Rx8 1.1V 288-pin 16Gbit Micron D

Name: Kinston Server Premier 16GB DDR5 5600MT/s ECC Registered DIMM CL46 x80 1Rx8 1.1V 288-pin 16Gbit Micron D
Brand: Kingston
SKU: KSM56R46BS8-16MD
Price: 205 USD
Availability: InStock

Our Products: Memory > Desktop Memory > DDR5 > DDR5 5600MHz

SKU: KSM56R46BS8-16MD

Brand: Kingston

Units in Stock: 2

16GB DDR5 5600MT/s ECC Registered DIMM CL46 x80 1Rx8 1.1V 288-pin 16Gbit Micron D

MPN: KSM56R46BS8-16MD

Price: $205.00

Product Details

Description:

Kingston's KSM56R46BS8-16MD is a 2G x 80-bit (16GB)

DDR5-5600 CL46 SDRAM (Synchronous DRAM), 1Rx8, ECC,

memory module, based on ten 2G x 8-bit FBGA components. The

SPD is programmed to JEDEC standard latency DDR5-5600 timing

of 46-45-45 at 1.1V. Each 288-pin DIMM uses gold contact fingers.

The electrical and mechanical specifications are as follows:

ï»¿Specifications:

CL(IDD)

Row Cycle Time (tRCmin)

Refresh to Active/Refresh

Command Time (tRFCmin)

Row Active Time (tRASmin)

Row Precharge Time (tRPmin)

UL Rating

Operating Temperature

Storage Temperature

46 cycles

48ns(min.)

295ns(min.)

32ns(min.)

16ns(min.)

94 V - 0

0 o C to +95o C

-55 o C to +100 o C

Features:

- Power Supply: VDD = 1.1V Typical

- VDDQ = 1.1V Typical

- VPP = 1.8V Typical

- VDDSPD = 1.8V to 2.0V

- On-Die ECC

- x80 ECC (x40, 2 independent I/O sub channels)

- 32 internal banks

- Hard/Soft Post Package Repair

- Sideband access with I3C/I2C

- PCB: Height 1.23" (31.25mm)

- RoHS Compliant and Halogen-Free
