    MSI CF03 Intel ADL-N Atom x7425E, 1*DDR5 SO-DIMM,1*DP+1*HDMI+1*LVDS+1*eDP,1*M.2 E key,1*M.2

    Our Products: Browse By Brand > MSI
    MSI CF03 Intel ADL-N Atom x7425E, 1*DDR5 SO-DIMM,1*DP+1*HDMI+1*LVDS+1*eDP,1*M.2 E key,1*M.2
    MSI CF03 Intel ADL-N Atom x7425E, 1*DDR5 SO-DIMM,1*DP+1*HDMI+1*LVDS+1*eDP,1*M.2 E key,1*M.2
    MSI CF03 Intel ADL-N Atom x7425E, 1*DDR5 SO-DIMM,1*DP+1*HDMI+1*LVDS+1*eDP,1*M.2 E key,1*M.2
    MSI CF03 Intel ADL-N Atom x7425E, 1*DDR5 SO-DIMM,1*DP+1*HDMI+1*LVDS+1*eDP,1*M.2 E key,1*M.2
    MSI CF03 Intel ADL-N Atom x7425E, 1*DDR5 SO-DIMM,1*DP+1*HDMI+1*LVDS+1*eDP,1*M.2 E key,1*M.2
    MSI CF03 Intel ADL-N Atom x7425E, 1*DDR5 SO-DIMM,1*DP+1*HDMI+1*LVDS+1*eDP,1*M.2 E key,1*M.2
    MSI CF03 Intel ADL-N Atom x7425E, 1*DDR5 SO-DIMM,1*DP+1*HDMI+1*LVDS+1*eDP,1*M.2 E key,1*M.2
    MSI CF03 Intel ADL-N Atom x7425E, 1*DDR5 SO-DIMM,1*DP+1*HDMI+1*LVDS+1*eDP,1*M.2 E key,1*M.2
    (Click to see larger image and other views)
    SKU: MBMSI911-CF03-003
    Brand: MSI

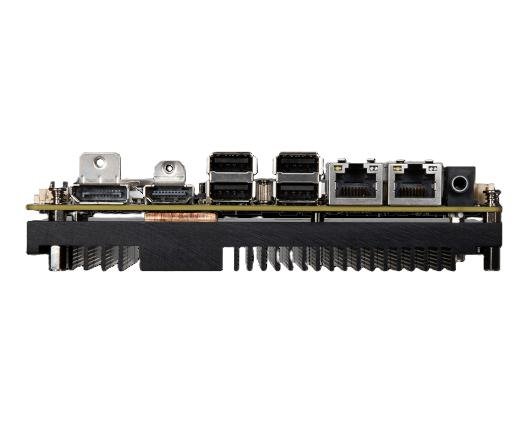

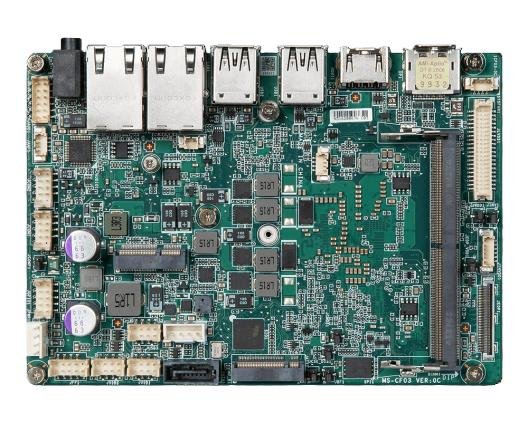

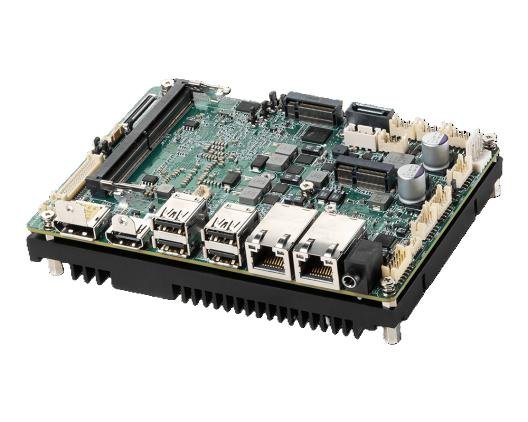

    The MSI MS-CF03 is a 3.5” Single Board Computer (SBC) designed for fanless, ultra low-power, high-performance applications, and capable of operating within a wide voltage range. It features the Intel® Alder Lake-N PC Client & Embedded Series SoC and supports up to 16GB of memory through a single DDR5 4800 MHz SODIMM slot. The board enables triple independent displays via DisplayPort, HDMI, LVDS, and eDP. Networking capabilities include two 2.5GbE LAN ports with RJ-45. Expansion options include one M.2 B Key slot and one M.2 E Key slot, as well as a SATA 3.0 port for storage. Connectivity options feature two USB 3.2 Gen 2 ports, two USB 3.2 Gen 1 ports, six USB 2.0 ports, two COM ports (including one RS-485), GPIO, audio, and a 6W amplifier. The board supports a wide voltage DC-IN range of 9-36V.
    MPN: 911-CF03-003
    Price: $229.00
    Previous Item Previous Item   Next Item Next Item
    Product Details

    3.5” SBC with Intel® Alder Lake-N & Twin Lake-N for Fanless, Ultra Low-Power, Wide Voltage Range & High-Performance Solution

    • Intel® Alder Lake-N & Twin Lake-N PC Client & Embedded Series SoC
    • DDR5 4800 MT/s SODIMM Slot up to 16GB
    • Triple independent displays: DP, HDMI, LVDS, eDP
    • 2 2.5 GbE LAN with RJ-45
    • 1 M.2 B Key, 1 M.2 E Key Slot
    • SATA 3.0 for storage
    • 2 USB 3.2 Gen 2, 2 USB 3.2 Gen 1, 6 USB 2.0, 2 COM (1 RS-485), GPIO, Audio, Amplifier-6W
    • Wide Voltage DC-IN 9~36V

    https://ipc.msi.com/product_detail/Industrial-Motherboard/3.5%22-SBC/MS-CF03
