    MSI MS-CF09-001 Micro-ATX Intel RPL-S,R680E,4*DDR5,HDMI+DP+eDP,3*M.2 M key,1*PCIe x16,3*PCIe x4,4*2.5GbE LAN,4*SATA

    Our Products: Browse By Brand > MSI
    MSI MS-CF09-001 Micro-ATX Intel RPL-S,R680E,4*DDR5,HDMI+DP+eDP,3*M.2 M key,1*PCIe x16,3*PCIe x4,4*2.5GbE LAN,4*SATA
    MSI MS-CF09-001 Micro-ATX Intel RPL-S,R680E,4*DDR5,HDMI+DP+eDP,3*M.2 M key,1*PCIe x16,3*PCIe x4,4*2.5GbE LAN,4*SATA
    MSI MS-CF09-001 Micro-ATX Intel RPL-S,R680E,4*DDR5,HDMI+DP+eDP,3*M.2 M key,1*PCIe x16,3*PCIe x4,4*2.5GbE LAN,4*SATA
    MSI MS-CF09-001 Micro-ATX Intel RPL-S,R680E,4*DDR5,HDMI+DP+eDP,3*M.2 M key,1*PCIe x16,3*PCIe x4,4*2.5GbE LAN,4*SATA
    MSI MS-CF09-001 Micro-ATX Intel RPL-S,R680E,4*DDR5,HDMI+DP+eDP,3*M.2 M key,1*PCIe x16,3*PCIe x4,4*2.5GbE LAN,4*SATA
    MSI MS-CF09-001 Micro-ATX Intel RPL-S,R680E,4*DDR5,HDMI+DP+eDP,3*M.2 M key,1*PCIe x16,3*PCIe x4,4*2.5GbE LAN,4*SATA
    (Click to see larger image and other views)
    SKU: MBMSI911-CF09-001
    Brand: MSI
    Units in Stock: 10

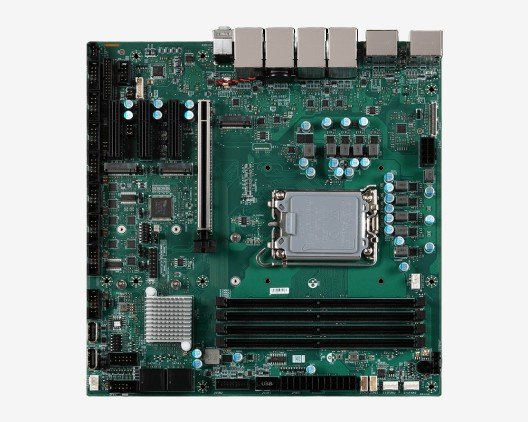

    The MS-CF09 is a Micro-ATX motherboard that supports 14th/13th/12th Gen Intel Raptor Lake-S Refresh/Alder Lake-S processors, offering a high-performance solution. It has 4 DDR5 4400 MT/s ECC/non-ECC UDIMM slots up to 128GB, quadruple independent display outputs (2DP, 2HDMI, eDP), 4 2.5GbE LAN ports, 1 PCIe x16 (Gen 5) slot, 2 PCIe x4 (Gen 4) slots, and 1 PCIe x4 (Gen 3) slot. Storage options include 3 M.2 M key slots and 4 SATA 3.0 ports with RAID 0/1/5/10 support. It also has 8 USB 3.2 Gen 2, 2 USB 3.2 Gen 1, 4 USB 2.0 ports, 6 COM (RS-485) ports, GPIO, PS/2, and audio connectors. The board features onboard TPM 2.0, SMBus, I2C, PMBus, iAMT 16.x, and chassis intrusion support. It uses an ATX power supply.
    MPN: 911-CF09-001
    Price: $299.00
    Previous Item Previous Item   Next Item Next Item
    Product Details

    Micro-ATX with 14th/13th/12th Gen Intel® Raptor Lake-S Refresh/Alder Lake-S, Core™ i9/i7/i5/i3, Pentium®, Celeron® Processor & Intel® R680E/Q670E/H610E for High-Performance Solution

    • Intel® 14th/13th/12th Gen Raptor Lake-S Refresh/Raptor Lake-S/Alder Lake-S Series with R680E/Q670E/H610E
    • 4 DDR5 4400 MT/s ECC/non-ECC UDIMM slots up to 128GB

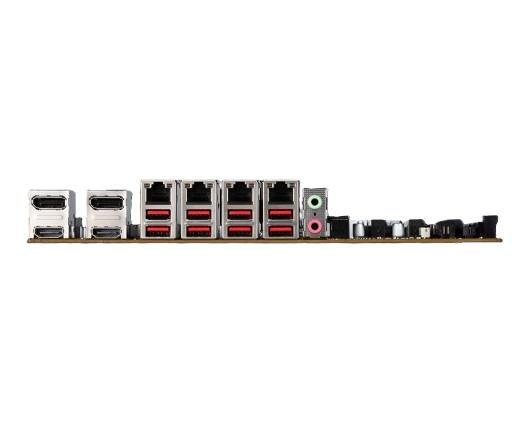

    • Quadruple independent displays: 2DP, 2HDMI, eDP
    • 4 2.5GbE LAN with RJ-45
    • 1 PCIe x16 (Gen 5) Slot, 2 PCIe x4 (Gen 4), 1 PCIe x4 (Gen 3) slots
    • 3 M.2 M key, 4 SATA 3.0 for storage
    • SATA RAID 0/1/5/10
    • 8 USB 3.2 Gen 2, 2 USB 3.2 Gen 1, 4 USB 2.0, 6 COM (6 RS-485), GPIO, PS/2, Audio, 3 System FAN
    • Onboard TPM 2.0
    • SMBus, I2C, PMBus, iAMT 16.x, Chassis Intrusion
    • ATX Power

    https://ipc.msi.com/product_detail/Industrial-Motherboard/Micro-ATX/MS-CF09
