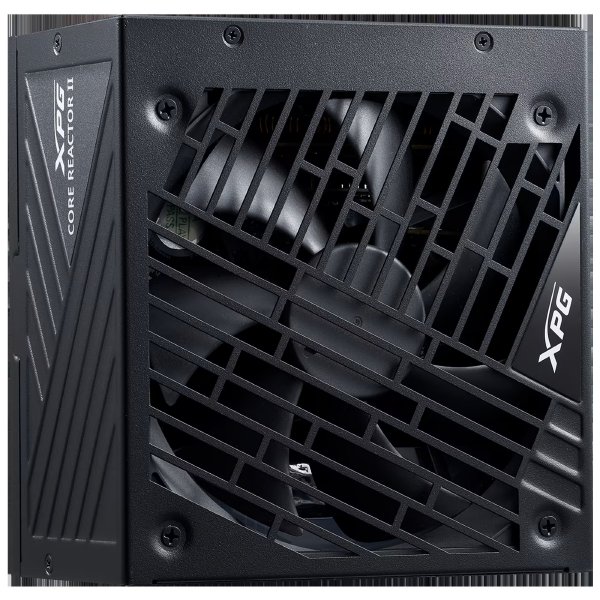

XPG Black CoreReactor II 1000wt 80+ Gold ATX 3.0 Fully Modular ATX Power Supply

Name: XPG Black CoreReactor II 1000wt 80+ Gold ATX 3.0 Fully Modular ATX Power Supply
Brand: ADATA
SKU: PSAD75261203
Price: 145 USD
Availability: InStock

Our Products: Power Supply > 951W-Greater

(Click to see larger image and other views)

SKU: PSAD75261203

Brand: ADATA

Units in Stock: 32

XPG CORE REACTOR II 80 PLUS GOLD 1000W ATX 3.1 Power Supply, COREREACTORII1000G BK C US

MPN: 75261203

Price: $145.00

Product Details

CORE REACTOR II is a top-performing power supply unit designed for ATX 3.1 compliance with a modular cable design and an 80 PLUS GOLD certification. These power supplies thrive in high-performance scenarios like servers or workstation setups, where a lot of power is needed

Specifications	Dimensions (L x W x H) 650W-850W: 140 x 150 x 86mm 1000W-1200W: 160 x 150 x 86mm Cybenetics Rating 1200W: PLATINUM 1000W: PLATINUM 850W: PLATINUM 750W: PLATINUM 650W: PLATINUM 80 Plus Rating GOLD ATX Version ATX 3.1 Protections OCP \| OVP \| OPP \| OTP \| UVP \| SCP \| NLO \| SIP Certification CE \| CB\| FCC(IC) \| TUV \| cTUVus \| TUV S-Mark \| NOM \| BSMI \| UKCA \| EAC \| CCC \| RCM PFC > 0.99 Input Voltage 100-240V Input Current 1200W: 15A 1000W: 13A 850W: 12A 750W: 10A 650W: 10A Input Frequency 650/750/850/1000/1200W:47Hz-63Hz DC Output Voltage +5V \| +3.3V \| +12V \| -12V \| +5Vsb Total Output 1200W: +5V/+3.3V :22A, +12V:100A, -12V:0.3A, +5Vsb:3A 1000W: +5V/+3.3V :22A, +12V:83.5A, -12V:0.3A, +5Vsb:3A 850W: +5V/+3.3V :22A, +12V:70.8A, -12V:0.3A, +5Vsb:3A 750W: +5V/+3.3V :22A, +12V:62.5A, -12V:0.3A, +5Vsb:3A 650W: +5V/+3.3V :20A, +12V:54.1A, -12V:0.3A, +5Vsb:3A Power Excursion 1200W: 2820W(up to 235% of the PSU's rated power for 100Î¼s) 1000W: 2350W(up to 235% of the PSU's rated power for 100Î¼s) 850W: 1997W (up to 235% of the PSU's rated power for 100Î¼s) 750W: 1762W (up to 235% of the PSU's rated power for 100Î¼s) 650W: 1527W(*up to 235% of the PSU's rated power for 100Î¼s) Operating Temperature 50°C Fan Size 650W-850W: 120mm FDB Fan 1000W-1200W: 135mm FDB Fan Fan Bearing FDB (Fluid Dynamic Bearing) Fan Speed 2400 RPM MTBF 100K hours at full load ATX 24 Pin Connector 1200W/1000W:1 850W/750W/650W:1 EPS 8 Pin Connector 1200W/1000W:2 850W/750W/650W:2 PCI-E 6+2 Pin Connector 1200W/1000W:8 850W/750W:6 650W:4 Molex 4 Pin Connector 1200W/1000W:3 850W/750W/650W:4 12V-2x6 / 12VHPWR (12+4) Connector (600W) 1200W/1000W/850W/750W: 1 Weight 1200W/1000W: Product+cablesï¼š1.77kg+1.28kg with Package:3.43kg 850W/750W: Product+cablesï¼š1596g+1254g with Package:3.1kg 650W: Product+cablesï¼š1299g+1231g with Package:2.78kg Warranty 10 Years
